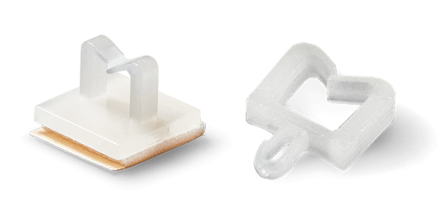

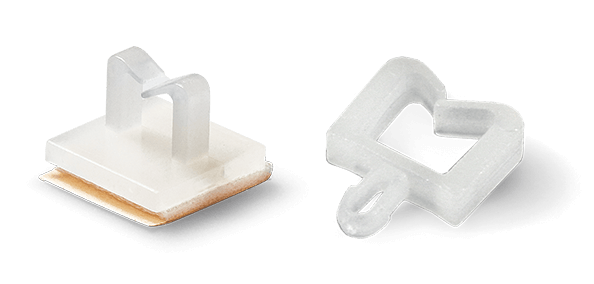

Plastic cable clamp LPR66

Miniature cable clamp for snap-in or adhesive film mounting for cable bundles of approx. Ø3 to Ø7.6 mm


400970
LPR 6650 MINIATUR-LEITUNGSHALTER
404356
LPR 6600 MINIATUR-LEITUNGSHALTER
Assembly type with adhesive tape plug in mounting
Material nylon 66 nylon 66
Fire protection class UL 94 V-2 UL 94 V-2
Colour natural natural
Ø Mounting hole (B "bottom") in mm - 2,0
Panel thickness in mm - 1,6
Height in mm 6,4 8,1
Ø Bundle/ Cable in mm 3,0 4,3
Height in clip in mm 3 4,3
Blocking mechanism clamping clamping
Type of cable round cable round cable
Component width in mm 9,5 2,0
Component length in mm 9,5 6,9
Length holder in mm 6,9 -
Width holder in mm 2,0 -
