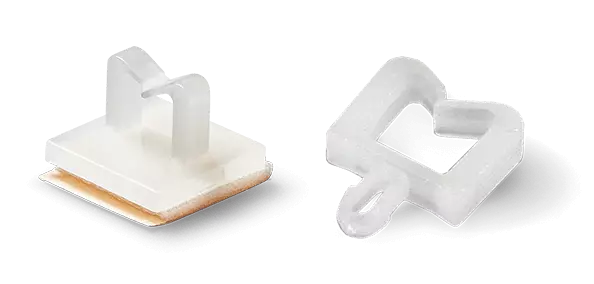

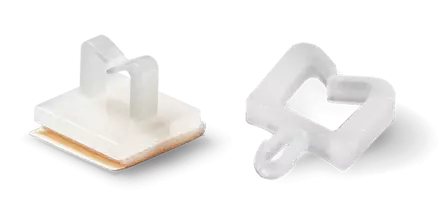

Plastic cable clamp LPR66

Miniature cable clamp for snap-in or adhesive film mounting for cable bundles of approx. Ø3 to Ø7.6 mm

Filtre rapide

	400970 LPR 6650 MINIATUR-LEITUNGSHALTER	404356 LPR 6600 MINIATUR-LEITUNGSHALTER
Assembly type	with adhesive tape	plug in mounting
Material	nylon 66	nylon 66
Fire protection class	UL 94 V-2	UL 94 V-2
Colour	natural	natural
Ø Mounting hole (B "bottom") in mm	-	2,0
Panel thickness in mm	-	1,6
Height in mm	6,4	8,1
Ø Bundle/ Cable in mm	3,0	4,3
Height in clip in mm	3	4,3
Blocking mechanism	clamping	clamping
Type of cable	round cable	round cable
Component width in mm	9,5	2,0
Component length in mm	9,5	6,9
Length holder in mm	6,9	-
Width holder in mm	2,0	-
