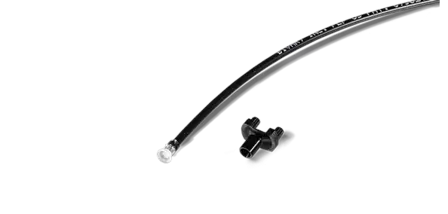

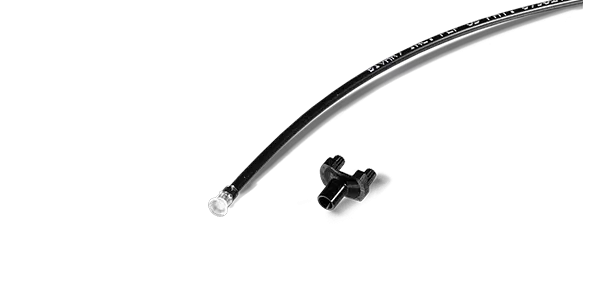

Flexible light guide EFLS
Flexible light guide with Ø4.2 mm lens (without LED) with base for direct PCB mounting. Flexible light guide available in standard lengths from 63.5 to 914.4 mm.
| 406184 EFLS 76,2 | 406540 EFLS 304,8 | 406572 EFLS 152,4 | 406573 EFLS 228,6 | 433020 EFLS 63,5 | |
|---|---|---|---|---|---|
| Number of optical fibers | 1 light pipe | 1 light pipe | 1 light pipe | 1 light pipe | 1 light pipe |
| Ø Face / Lens in mm | 4,2 | 4,2 | 4,2 | 4,2 | 4,2 |
| Face/ Lens profil | round and flat | round and flat | round and flat | round and flat | round and flat |
| LED included | No | No | No | No | No |
| Material face | polycarbonate | polycarbonate | polycarbonate | polycarbonate | polycarbonate |
| Color face | transparent | transparent | transparent | transparent | transparent |
| Length x in mm | 76,2 | 304,8 | 152,4 | 228,6 | 63,5 |
