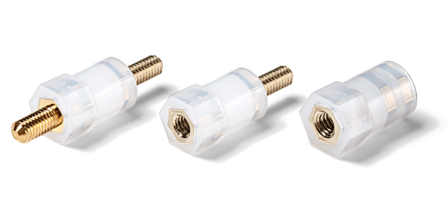

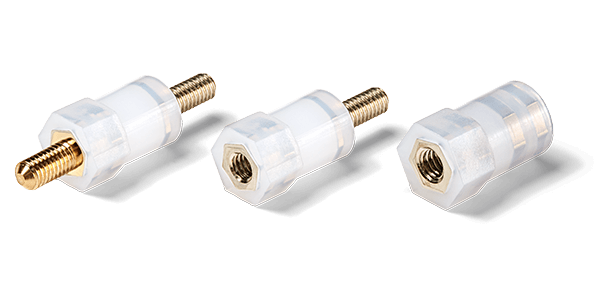

PCB standoff PEGH

Miniature hexagonal standoff with M2.5 or M3 metal threads for distance length 4 to 12 mm

Drawing Product enquiry

Quick filter

	404052 PEG H-M2,5-4-A	404053 PEG H-M2,5-5-A	404054 PEG H-M2,5-6-A	404055 PEG H-M2,5-7-A	404056 PEG H-M2,5-8-A	404057 PEG H-M2,5-9-A	404058 PEG H-M2,5-10-A	404059 PEG H-M2,5-11-A	404060 PEG H-M2,5-12-A	404061 PEG H-M2,5-7-B	404062 PEG H-M2,5-8-B	404063 PEG H-M2,5-9-B	404064 PEG H-M2,5-10-B	404065 PEG H-M2,5-11-B	404066 PEG H-M2,5-12-B	404067 PEG H-M2,5-9-C	404068 PEG H-M2,5-10-C	404069 PEG H-M2,5-11-C	404070 PEG H-M2,5-12-C	404071 PEG H-M3-4-A	404072 PEG H-M3-5-A	404073 PEG H-M3-6-A	404074 PEG H-M3-7-A	404075 PEG H-M3-8-A	404076 PEG H-M3-9-A	404077 PEG H-M3-10-A	404078 PEG H-M3-11-A	404079 PEG H-M3-12-A	404080 PEG H-M3-7-B	404081 PEG H-M3-8-B	404082 PEG H-M3-9-B	404083 PEG H-M3-10-B	404084 PEG H-M3-11-B	404085 PEG H-M3-12-B	404086 PEG H-M3-9-C	404087 PEG H-M3-10-C	404088 PEG H-M3-11-C	404089 PEG H-M3-12-C
Distance height in mm	4,0	5,0	6,0	7,0	8,0	9,0	10,0	11,0	12,0	7,0	8,0	9,0	10,0	11,0	12,0	9,0	10,0	11,0	12,0	4,0	5,0	6,0	7,0	8,0	9,0	10,0	11,0	12,0	7,0	8,0	9,0	10,0	11,0	12,0	9,0	10,0	11,0	12,0
Model	Type A (male/ male)	Type A (male/ male)	Type A (male/ male)	Type A (male/ male)	Type A (male/ male)	Type A (male/ male)	Type A (male/ male)	Type A (male/ male)	Type A (male/ male)	Type B (male/ female)	Type B (male/ female)	Type B (male/ female)	Type B (male/ female)	Type B (male/ female)	Type B (male/ female)	Type C (female/ female)	Type C (female/ female)	Type C (female/ female)	Type C (female/ female)	Type A (male/ male)	Type A (male/ male)	Type A (male/ male)	Type A (male/ male)	Type A (male/ male)	Type A (male/ male)	Type A (male/ male)	Type A (male/ male)	Type A (male/ male)	Type B (male/ female)	Type B (male/ female)	Type B (male/ female)	Type B (male/ female)	Type B (male/ female)	Type B (male/ female)	Type C (female/ female)	Type C (female/ female)	Type C (female/ female)	Type C (female/ female)
Ø Female thread in mm	-	-	-	-	-	-	-	-	-	M2,5	M2,5	M2,5	M2,5	M2,5	M2,5	M2,5	M2,5	M2,5	M2,5	-	-	-	-	-	-	-	-	-	M3	M3	M3	M3	M3	M3	M3	M3	M3	M3
Thread depth (inside) in mm	-	-	-	-	-	-	-	-	-	4	4	4	4	4	4	4	4	4	4	-	-	-	-	-	-	-	-	-	4	4	4	4	4	4	4	4	4	4
Ø Male thread in mm	M2,5	M2,5	M2,5	M2,5	M2,5	M2,5	M2,5	M2,5	M2,5	M2,5	M2,5	M2,5	M2,5	M2,5	M2,5	-	-	-	-	M3	M3	M3	M3	M3	M3	M3	M3	M3	M3	M3	M3	M3	M3	M3	-	-	-	-
Thread length (outside) in mm	6,0	6,0	6,0	6,0	6,0	6,0	6,0	6,0	6,0	6,0	6,0	6,0	6,0	6,0	6,0	-	-	-	-	6,0	6,0	6,0	6,0	6,0	6,0	6,0	6,0	6,0	6,0	6,0	6,0	6,0	6,0	6,0	-	-	-	-
Outer Diameter body in mm	6	6	6	6	6	6	6	6	6	6	6	6	6	6	6	6	6	6	6	7	7	7	7	7	7	7	7	7	7	7	7	7	7	7	7	7	7	7
Material	nylon 6	nylon 6	nylon 6	nylon 6	nylon 6	nylon 6	nylon 6	nylon 6	nylon 6	nylon 6	nylon 6	nylon 6	nylon 6	nylon 6	nylon 6	nylon 6	nylon 6	nylon 6	nylon 6	nylon 6	nylon 6	nylon 6	nylon 6	nylon 6	nylon 6	nylon 6	nylon 6	nylon 6	nylon 6	nylon 6	nylon 6	nylon 6	nylon 6	nylon 6	nylon 6	nylon 6	nylon 6	nylon 6
Material of thread	brass	brass	brass	brass	brass	brass	brass	brass	brass	brass	brass	brass	brass	brass	brass	brass	brass	brass	brass	brass	brass	brass	brass	brass	brass	brass	brass	brass	brass	brass	brass	brass	brass	brass	brass	brass	brass	brass
Fire protection class	UL 94 HB	UL 94 HB	UL 94 HB	UL 94 HB	UL 94 HB	UL 94 HB	UL 94 HB	UL 94 HB	UL 94 HB	UL 94 HB	UL 94 HB	UL 94 HB	UL 94 HB	UL 94 HB	UL 94 HB	UL 94 HB	UL 94 HB	UL 94 HB	UL 94 HB	UL 94 HB	UL 94 HB	UL 94 HB	UL 94 HB	UL 94 HB	UL 94 HB	UL 94 HB	UL 94 HB	UL 94 HB	UL 94 HB	UL 94 HB	UL 94 HB	UL 94 HB	UL 94 HB	UL 94 HB	UL 94 HB	UL 94 HB	UL 94 HB	UL 94 HB
Temperature range	-30°C - +85°C	-30°C - +85°C	-30°C - +85°C	-30°C - +85°C	-30°C - +85°C	-30°C - +85°C	-30°C - +85°C	-30°C - +85°C	-30°C - +85°C	-30°C - +85°C	-30°C - +85°C	-30°C - +85°C	-30°C - +85°C	-30°C - +85°C	-30°C - +85°C	-30°C - +85°C	-30°C - +85°C	-30°C - +85°C	-30°C - +85°C	-30°C - +85°C	-30°C - +85°C	-30°C - +85°C	-30°C - +85°C	-30°C - +85°C	-30°C - +85°C	-30°C - +85°C	-30°C - +85°C	-30°C - +85°C	-30°C - +85°C	-30°C - +85°C	-30°C - +85°C	-30°C - +85°C	-30°C - +85°C	-30°C - +85°C	-30°C - +85°C	-30°C - +85°C	-30°C - +85°C	-30°C - +85°C
Colour	natural	natural	natural	natural	natural	natural	natural	natural	natural	natural	natural	natural	natural	natural	natural	natural	natural	natural	natural	natural	natural	natural	natural	natural	natural	natural	natural	natural	natural	natural	natural	natural	natural	natural	natural	natural	natural	natural
