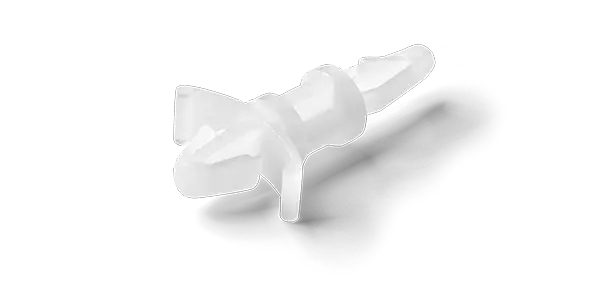

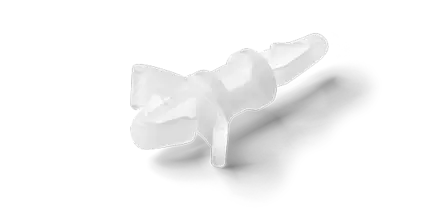

PCB spacer LPR80N
Double-sided snap-on spacer for distance lengths from 4.8 to 34.9 mm. For mounting on max. 2.8 mm thick panels. Easy to release by pressing the nose.
| 400997 LPR 8001-N | 400999 LPR 8002-N | 401000 LPR 8003-N | 401001 LPR 8004-N | 401002 LPR 8005-N | 401003 LPR 8006-N | 401004 LPR 8007-N | 401005 LPR 8008-N | 401006 LPR 8009-N | 401007 LPR 8010-N | 401008 LPR 8011-N | 408040 LPR 8005-S | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Distance height in mm | 4,8 | 6,4 | 9,5 | 12,7 | 15,8 | 19,1 | 22,2 | 25,4 | 28,6 | 31,8 | 34,9 | 15,9 |
| Mounting (A "top") | Snap lock | Snap lock | Snap lock | Snap lock | Snap lock | Snap lock | Snap lock | Snap lock | Snap lock | Snap lock | Snap lock | Snap lock |
| Mounting (B "bottom") | Snap lock | Snap lock | Snap lock | Snap lock | Snap lock | Snap lock | Snap lock | Snap lock | Snap lock | Snap lock | Snap lock | Snap lock |
| Outer Diameter body in mm | 7,1 | 7,1 | 7,1 | 7,1 | 7,1 | 7,1 | 7,1 | 7,1 | 7,1 | 7,1 | 7,1 | 7,1 |
| Material | nylon 66 | nylon 66 | nylon 66 | nylon 66 | nylon 66 | nylon 66 | nylon 66 | nylon 66 | nylon 66 | nylon 66 | nylon 66 | nylon 66 |
| Fire protection class | UL 94 V-2 | UL 94 V-2 | UL 94 V-2 | UL 94 V-2 | UL 94 V-2 | UL 94 V-2 | UL 94 V-2 | UL 94 V-2 | UL 94 V-2 | UL 94 V-2 | UL 94 V-2 | UL 94 V-2 |
| Colour | natural | natural | natural | natural | natural | natural | natural | natural | natural | natural | natural | natural |
| Ø Mounting hole (B "bottom") in mm | 4,75 | 5,00 | 4,75 | 4,75 | 4,75 | 4,75 | 4,75 | 4,75 | 4,75 | 4,75 | 4,75 | 4,75 |
| Overlap (B "bottom") in mm | 5,6 | 5,5 | 5,6 | 5,6 | 7,5 | 5,6 | 5,6 | 5,6 | 5,6 | 5,6 | 5,6 | 5,6 |
| Ø Mounting hole (A "top") in mm | 4,0 | 4,00 | 4,0 | 4,0 | 4,0 | 4,0 | 4,00 | 4,00 | 4,00 | 4,00 | 4,00 | 4,00 |
| Overlap (A "top") in mm | 10,2 | 10,7 | 10,2 | 10,2 | 10,2 | 10,2 | 10,2 | 10,2 | 10,2 | 10,2 | 10,2 | 10,2 |
| Panel thickness (A "top") in mm | 1,57 | 1,57 | 1,57 | 1,57 | 1,8 | 1,57 | 1,57 | 1,57 | 1,57 | 1,57 | 1,57 | 1,57 |
| Panel thickness (B "bottom") in mm | 0,79 - 1,98 | 0,79 - 1,98 | 0,79 - 1,98 | 0,79 - 1,98 | 1,5 - 2,6 | 0,79 - 1,98 | 0,79 - 1,98 | 0,79 - 1,98 | 0,79 - 1,98 | 0,79 - 1,98 | 0,79 - 1,98 | 0,79 - 1,98 |
