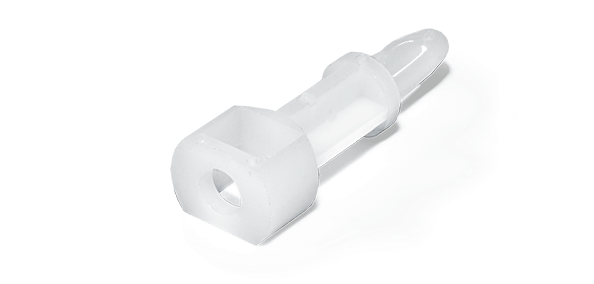

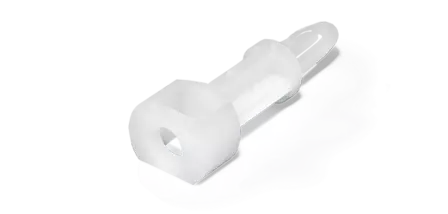

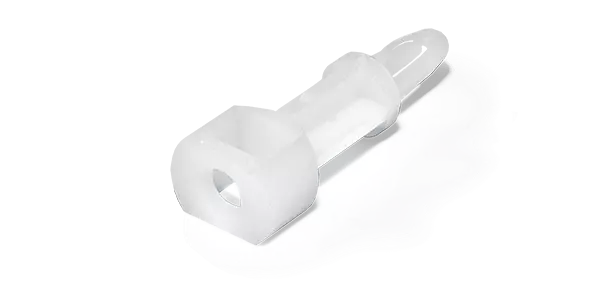

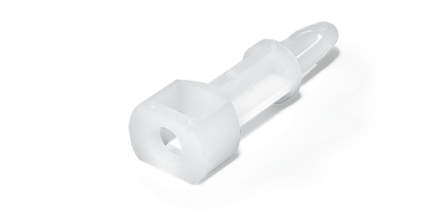

PCB spacer LPR810

Spacer for snap mounting on one side and fixing with rivet (accessory) on the other, in lengths 9.5 to 25.4 mm

Quick filter

	402118 LPR 8103-N	402367 LPR 8105 N	402368 LPR 8106-N	402369 LPR 8107-N	402370 LPR 8108-N	402371 LPR 8104-N
Distance height in mm	9,5	15,9	19,1	22,2	25,4	12,7
Mounting (A "top")	Snap lock	Snap lock	Snap lock	Snap lock	Snap lock	Snap lock
Material	nylon 66	nylon 66	nylon 66	nylon 66	nylon 66	nylon 66
Fire protection class	UL 94 V-2	UL 94 V-2	UL 94 V-2	UL 94 V-2	-	UL 94 V-2
Temperature range	-40°C - +85°C	-40°C - +85°C	-40°C - +85°C	-40°C - +85°C	-40°C - +85°C	-40°C - +85°C
Colour	natural	natural	natural	natural	natural	natural
Overlap (B "bottom") in mm	0,0	0,0	0,0	0,0	0,0	0,0
Ø Mounting hole (A "top") in mm	4,0	4,0	4,0	4,0	4,0	4,0
Overlap (A "top") in mm	10,2	10,2	4,0	10,2	10,2	10,2
Panel thickness (A "top") in mm	1,6	1,6	1,6	1,6	1,6	1,6
Panel thickness (B "bottom") in mm	8,7	8,7	8,7	8,7	8,7	8,7
