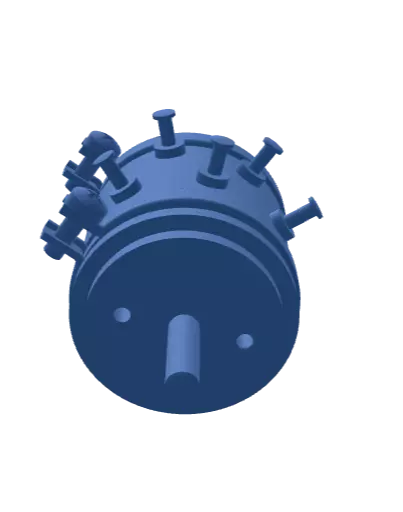

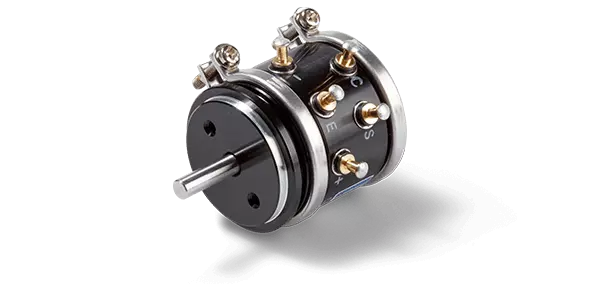

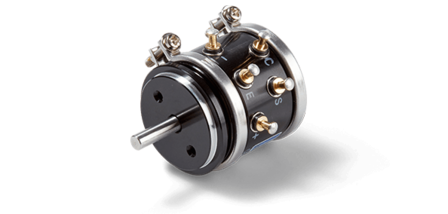

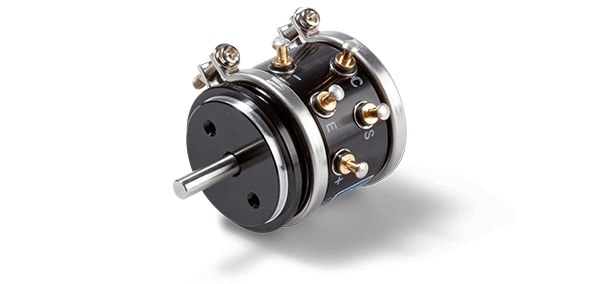

Product description: SIN-COS Potentiometer SCX22
Sine-cosine potentiometer for precise motion control and mathematical applications
The SCX22 is a high-precision conductive plastic potentiometer specially developed for applications requiring precise angle measurements, coordinate transformations and vector calculations. Its sinusoidal and cosinusoidal output signals enable the calculation of precise angular positions and the transfer of movements into x-y coordinate systems.
The combination of a lifetime of over 50 million revolutions, a 360° electrical rotation angle and the robust metal housing construction makes the SCX22 ideal for control systems in demanding environments. For continuous rotation applications, additional counters can be used to accurately measure multiple rotations. The optional oil filling provides additional protection for harsh operating conditions.
- Sine and cosine output signals for precise trigonometric calculations and conversions to coordinate systems
- Radial gold-plated connections
- Angle measurement per full rotation, after 360° precise measurement over 360° again
Options:
- Tandem version: For redundant signal output, up to 3 gears
- Rear shaft: For mechanical connections to synchronised mechanisms
- Resistance values: 0.5 kOhm to 50 kOhm
- Linearity: ±2% (option: ±1%)
- Resistance tolerance: ±15% (option: ±10%)
- Screwdriver slot: For manual adjustment
- Oil filling on request: For protection in extremely harsh environments
- Shaft adaptations: Various geometries and lengths available
