PCB guide ELBP

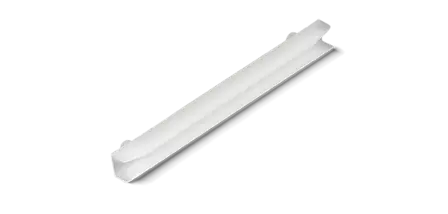

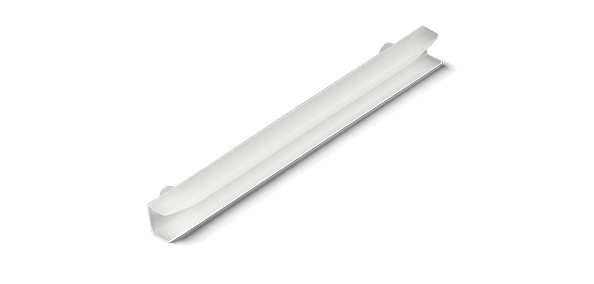

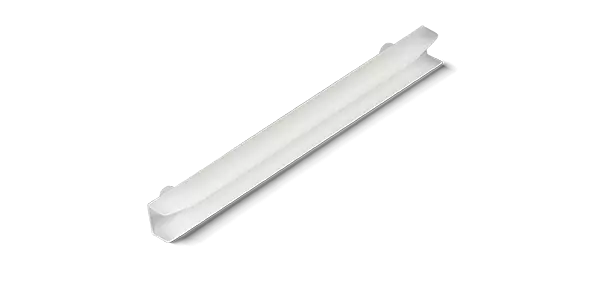

Plug-in vertical PCB guide in the lengths 63.5 to 215.9 mm for PCB thickness max. 2 mm
| 403213 ELB P-063 PRESS-IN LEITERPLATTENFÜHRUNG | 403214 ELB P-076 PRESS-IN LEITERPLATTENFÜHRUNG | 403215 ELB P-088 PRESS-IN-LEITERPLATTENFÜHRUNG | 403216 ELB P-101 PRESS-IN LEITERPLATTENFÜHRUNG | 403217 ELB P-114 PRESS-IN LEITERPLATTENFÜHRUNG | 403219 ELB P-139 PRESS-IN-LEITERPLATTENFÜHRUNG | 403220 ELB P-152 PRESS-IN-LEITERPLATTENFÜHRUNG | 403221 ELB P-165 PRESS-IN-LEITERPLATTENFÜHRUNG | 403222 ELB P-177 PRESS-IN-LEITERPLATTENFÜHRUNG | 403223 ELB P-190-3 PRESS-IN-LEITERPLATTENFÜHRUNG | 403224 ELB P-203-3 PRESS-IN LEITERPLATTENFÜHRUNG | 403225 ELB P-216-3 PRESS-IN LEITERPLATTENFÜHRUNG | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Assembly type | plug | plug | plug | plug | plug | plug | plug | plug | plug | plug | plug | plug |
| Material | nylon 66 | nylon 66 | nylon 66 | nylon 66 | nylon 66 | nylon 66 | nylon 66 | nylon 66 | nylon 66 | nylon 66 | nylon 66 | nylon 66 |
| Colour | natural | natural | natural | natural | natural | natural | natural | natural | natural | natural | natural | natural |
| (A) length-overall in mm | 63,5 | 76,2 | 88,9 | 101,6 | 114,3 | 139,7 | 152,4 | 165,1 | 177,8 | 190,5 | 203,2 | 215,9 |
| (B) Distance between fastening spigots in mm | 50,8 | 63,5 | 76,2 | 88,9 | 101,6 | 127,0 | 139,7 | 152,4 | 165,1 | 177,8 | 190,5 | 203,2 |
| (C) Distance between fastening spigots in mm | - | - | - | - | - | - | - | - | - | 88,9 | 95,2 | 101,6 |
| Groove depth in mm | 3,2 | 3,2 | 3,2 | 3,2 | 3,2 | 3,2 | 3,2 | 3,2 | 3,2 | 3,2 | 3,2 | 3,2 |
| Groove width in mm | 2,0 | 2,0 | 2,0 | 2,0 | 2,0 | 2,0 | 2,0 | 2,0 | 2,0 | 2,0 | 2,0 | 2,0 |
| for PCB thickness | 1,6 | 1,6 | 1,6 | 1,6 | 1,6 | 1,6 | 1,6 | 1,6 | 1,6 | 1,6 | 1,6 | 1,6 |
| Fire protection class | UL 94 V-2 | UL 94 V-2 | UL 94 V-2 | UL 94 V-2 | UL 94 V-2 | UL 94 V-2 | UL 94 V-2 | UL 94 V-2 | UL 94 V-2 | UL 94 V-2 | UL 94 V-2 | UL 94 V-2 |
