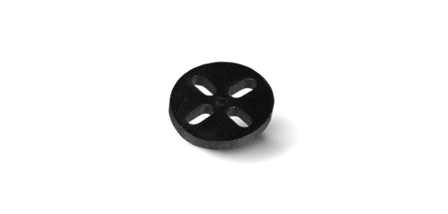

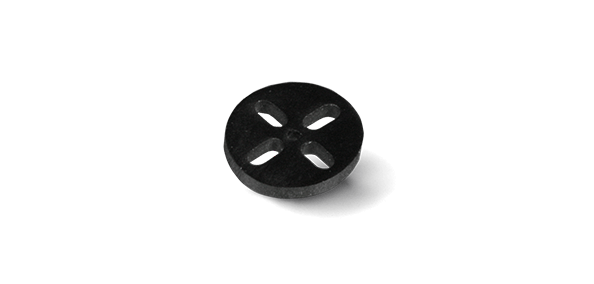

LED spacer ELBLU53
Universal LED spacer allows total length from 1 to 30 mm. For LEDs with max. Ø5.1 mm
| 403835 ELB LU53-010 | 403836 ELB LU53-020 | 403837 ELB LU53-040 | 403838 ELB LU53-060 | 403839 ELB LU53-080 | 403840 ELB LU53-100 | 403841 ELB LU53-120 | 403842 ELB LU53-140 | 403843 ELB LU53-160 | 403844 ELB LU53-180 | 403845 ELB LU53-200 | 403846 ELB LU53-220 | 403847 ELB LU53-240 | 403848 ELB LU53-260 | 403849 ELB LU53-280 | 403850 ELB LU53-300 | 405925 ELB LU53-170 | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Material | PVC | PVC | PVC | PVC | PVC | PVC | PVC | PVC | PVC | PVC | PVC | PVC | PVC | PVC | PVC | PVC | PVC |
| Fire protection class | UL 94 V-0 | UL 94 V-0 | UL 94 V-0 | UL 94 V-0 | UL 94 V-0 | UL 94 V-0 | UL 94 V-0 | UL 94 V-0 | UL 94 V-0 | UL 94 V-0 | UL 94 V-0 | UL 94 V-0 | UL 94 V-0 | UL 94 V-0 | UL 94 V-0 | UL 94 V-0 | UL 94 V-0 |
| Temperature range | -110C° - +250°C | -110C° - +250°C | -110C° - +250°C | -110C° - +250°C | -110C° - +250°C | -110C° - +250°C | -110C° - +250°C | -110C° - +250°C | -110C° - +250°C | -110C° - +250°C | -110C° - +250°C | -110C° - +250°C | -110C° - +250°C | -110C° - +250°C | -110C° - +250°C | -110C° - +250°C | -110C° - +250°C |
| Colour | black | black | black | black | black | black | black | black | black | black | black | black | black | black | black | black | black |
| Ø Inner in mm | 5,1 | 5,1 | 5,1 | 5,1 | 5,1 | 5,1 | 5,1 | 5,1 | 5,1 | 5,1 | 5,1 | 5,1 | 5,1 | 5,1 | 5,1 | 5,1 | 5,1 |
| Ø Outer in mm | 6,5 | 6,5 | 6,5 | 6,5 | 6,5 | 6,5 | 6,5 | 6,5 | 6,5 | 6,5 | 6,5 | 6,5 | 6,5 | 6,5 | 6,5 | 6,5 | 6,5 |
| Height "H" in mm | 1 | 2 | 4 | 6 | 8 | 10 | 12 | 14 | 16 | 18 | 20 | 22 | 24 | 26 | 28 | 30 | 17 |
| Number of employed LEDs | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| LED Size | 5 mm | 5 mm | 5 mm | 5 mm | 5 mm | 5 mm | 5 mm | 5 mm | 5 mm | 5 mm | 5 mm | 5 mm | 5 mm | 5 mm | 5 mm | 5 mm | 5 mm |
