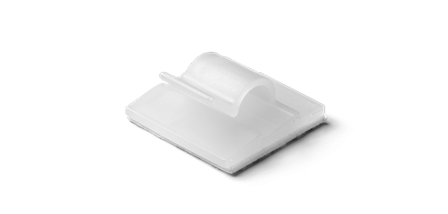

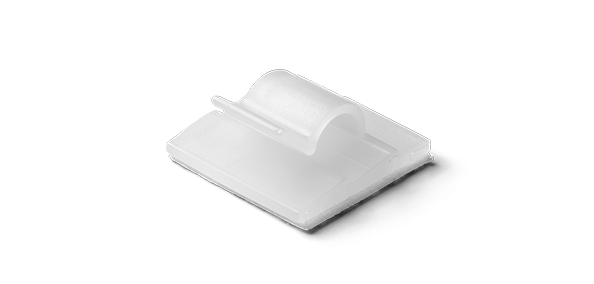

Plastic cable clamp LPR54
Cable clip with adhesive film mounting. Three clip styles for different cable sizes.
| 402466 LPR 5430-N | 402467 LPR 5432-N | 402468 LPR 5436-N | 403709 LPR 5430-N-3MV | 409154 LPR 5432-N-3MV | 409824 LPR 5436-N-3MV | 412937 LPR 5430-N | |
|---|---|---|---|---|---|---|---|
| Assembly type | with adhesive tape | with adhesive tape | with adhesive tape | with adhesive tape | with adhesive tape | with adhesive tape | with adhesive tape |
| Material | polyamide 6.6 | polyamide 6.6 | polyamide 6.6 | polyamide 6.6 | polyamide 6.6 | polyamide 6.6 | polyamide 6.6 |
| Fire protection class | UL 94 V-2 | UL 94 V-2 | UL 94 V-2 | UL 94 V-2 | UL 94 V-2 | UL 94 V-2 | UL 94 V-2 |
| Temperature range | -40°C - +85°C | -40°C - +85°C | -40°C - +85°C | -40°C - +85°C | 21°C - 38°C | 21°C - 38°C | -40°C - +85°C |
| Colour | natural | natural | natural | natural | natural | natural | black |
| Material adhesive film | rubber based, foam polyethylene | rubber based, foam polyethylene | rubber based, foam polyethylene | acrylat based, foam polyester | ACRYLAT_PE | ACRYLAT_PE | rubber based, foam polyethylene |
| Height in mm | 5 | 12 | 15 | 5 | 11,5 | 17,1 | 5 |
| Blocking mechanism | clamping | clamping | clamping | clamping | clamping | clamping | clamping |
| Type of cable | round cable | round cable | round cable | round cable | round cable | round cable | round cable |
| Component width in mm | 19 | 26 | 26 | 19 | 26 | 25 | 19 |
| Component length in mm | 19 | 26 | 26 | 19 | 26 | 25 | 19 |
| Length holder in mm | 4,9 | 12 | 18 | 4,9 | 11,9 | 18,1 | 4,9 |
| Width holder in mm | 10 | 12,3 | 16 | 10 | 12,0 | 15,4 | 10 |
