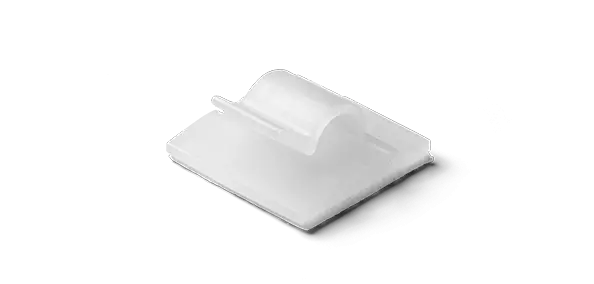

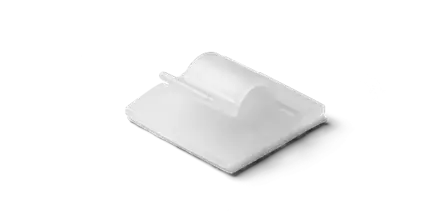

Plastic cable clamp LPR54

Cable clip with adhesive film mounting. Three clip styles for different cable sizes.


402466
LPR 5430-N RUNDKABELHALTER
402467
LPR 5432-N RUNDKABELHALTER
402468
LPR 5436-N RUNDKABELHALTER
403709
LPR 5430-3MV RUNDKABELHALTER
409154
LPR 5432-3MV RUNDKABELHALTER
409824
LPR 5436-3MV RUNDKABELHALTER
412937
LPR 5430 SW RUNDKABELHALTER
433128
LPR 5432-3MV RUNDKABELHALTER
Assembly type with adhesive tape with adhesive tape with adhesive tape with adhesive tape with adhesive tape with adhesive tape with adhesive tape with adhesive tape
Material polyamide 6.6 polyamide 6.6 polyamide 6.6 polyamide 6.6 polyamide 6.6 polyamide 6.6 polyamide 6.6 polyamide 6.6
Fire protection class UL 94 V-2 UL 94 V-2 UL 94 V-2 UL 94 V-2 UL 94 V-2 UL 94 V-2 UL 94 V-2 UL 94 V-2
Temperature range -40°C - +85°C -40°C - +85°C -40°C - +85°C -40°C - +85°C 21°C - 38°C 21°C - 38°C -40°C - +85°C -
Colour natural natural natural natural natural natural black natural
Material adhesive film rubber based, foam polyethylene rubber based, foam polyethylene rubber based, foam polyethylene acrylat based, foam polyester ACRYLAT_PE ACRYLAT_PE rubber based, foam polyethylene ACRYLAT_PE
Height in mm 5 12 15 5 11,5 17,1 5 11,5
Blocking mechanism clamping clamping clamping clamping clamping clamping clamping clamping
Type of cable round cable round cable round cable round cable round cable round cable round cable round cable
Component width in mm 19 26 26 19 26 25 19 26
Component length in mm 19 26 26 19 26 25 19 26
Length holder in mm 4,9 12 18 4,9 11,9 18,1 4,9 11,9
Width holder in mm 10 12,3 16 10 12,0 15,4 10 12
