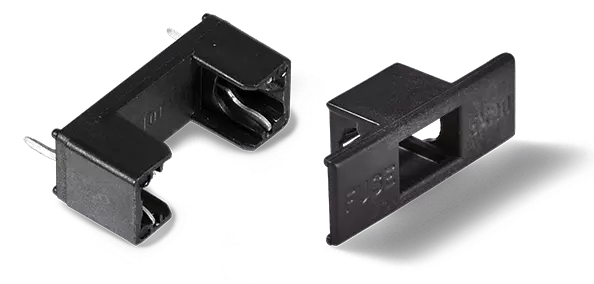

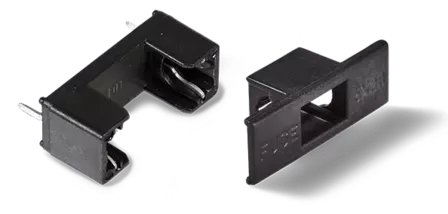

Fuse bracket EHI100
Holder for 5x20mm fuses. For direct soldering to the PCB. The cover is easy to remove and provides protection against accidental contact.
| 402678 EHI 100 - KOMPLETT | 402680 EHI 101 - KOMPLETT | |
|---|---|---|
| Widths in mm | 24,5 | 24,5 |
| Height in mm | 11,0 | 11,0 |
| Depth in mm | 9,5 | 9,5 |
| Material | nylon 66, fibre-glass reinforced | nylon 66 |
| Colour | black | black |
| Fire protection class | UL 94 V-0 | UL 94 V-0 |
| Type | Type 2 | Type 1 |
