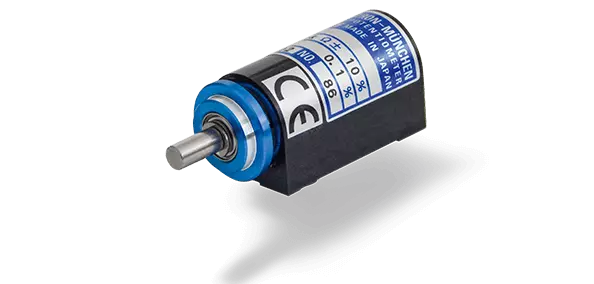

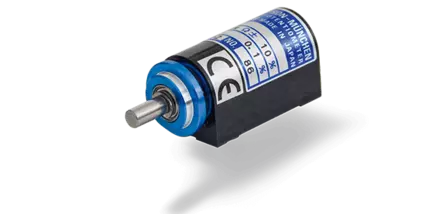

Multiturn Wirewound Potentiometer AL13

Precision potentiometer AL13 in Ø13 mm servo flange housing - Compact and durable solution for precise position measurement in the smallest of spaces

  • Space-saving housing design only Ø13 mm
  • Electrically effective angle of rotation up to 3600° (10-turn)
  • Lifetime over 2 million revolutions
  • Temperature range -20 to +105 °C
  • Robust 2-fold ball bearing

PotentiometerMultiturn
Data sheet Product enquiry
Specifications
Sensor technology Wirewound Potentiometer
Effective electrical angle of rotation max. 3600°
Functions / Features With mech. stop
Resolution Depends on resistance value
Output signal Analogue
Electrical connection Radial, Solder contacts
Protection class IP40
Mounting Servo flange
Shaft diameter 3.17 mm
Housing diameter 13 mm
Housing depth min. 28.2 mm
Description
Compact solution for precise position measurements in the ... more
