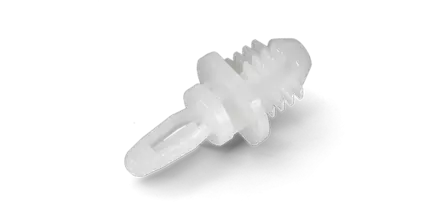

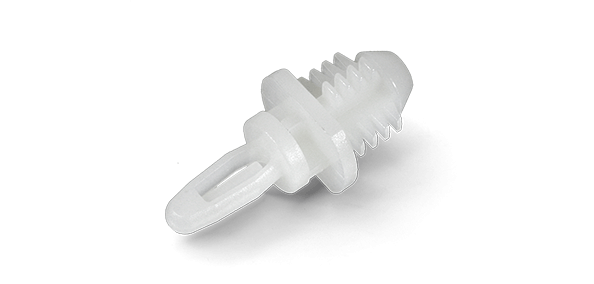

PCB spacer LPR862
Spacer for blind holes on one side and snap-on mounting on the other without fixing support in the nose. Easy to release by pressing the nose. For spacer lengths from 4.8 to 22.2 mm.
| 407738 LPR 8620 | 407739 LPR 8621 | 407740 LPR 8622 | 407741 LPR 8623 | 407742 LPR 8624 | 407743 LPR 8625 | 407744 LPR 8626 | 407745 LPR 8627 | |
|---|---|---|---|---|---|---|---|---|
| Distance height in mm | 4,8 | 6,4 | 9,5 | 11,1 | 12,7 | 15,9 | 19,1 | 22,2 |
| Mounting (A "top") | Snap lock | Snap lock | Snap lock | Snap lock | Snap lock | Snap lock | Snap lock | Snap lock |
| Mounting (B "bottom") | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 |
| Outer Diameter body in mm | 7,1 | 7,1 | 7,1 | 7,1 | 7,1 | 7,1 | 7,1 | 7,1 |
| Material | nylon 66 | nylon 66 | nylon 66 | nylon 66 | nylon 66 | nylon 66 | nylon 66 | nylon 66 |
| Fire protection class | UL 94 V-2 | UL 94 V-2 | UL 94 V-2 | UL 94 V-2 | UL 94 V-2 | UL 94 V-2 | UL 94 V-2 | UL 94 V-2 |
| Colour | natural | natural | natural | natural | natural | natural | natural | natural |
| Ø Mounting hole (B "bottom") in mm | 7,92 | 7,92 | 7,92 | 7,92 | 7,92 | 7,92 | 7,92 | 7,92 |
| Overlap (B "bottom") in mm | 8,7 | 8,7 | 8,7 | 8,7 | 8,7 | 8,7 | 8,7 | 8,7 |
| Ø Mounting hole (A "top") in mm | 4,0 | 4,0 | 4,0 | 4,0 | 4,00 | 4,0 | 4,0 | 4,0 |
| Overlap (A "top") in mm | 10,2 | 10,2 | 10,2 | 10,2 | 10,2 | 10,2 | 10,2 | 10,2 |
| Panel thickness (A "top") in mm | 1,57 | 1,57 | 1,57 | 1,57 | 1,57 | 1,57 | 1,57 | 1,57 |
| Panel thickness (B "bottom") in mm | 6,4 | 6,4 | 6,4 | 6,4 | 6,4 | 6,4 | 6,4 | 6,4 |
