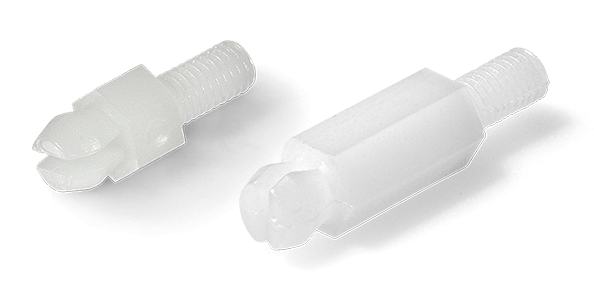

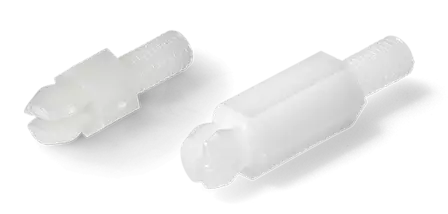

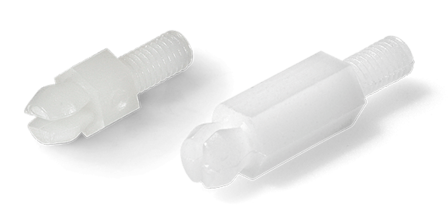

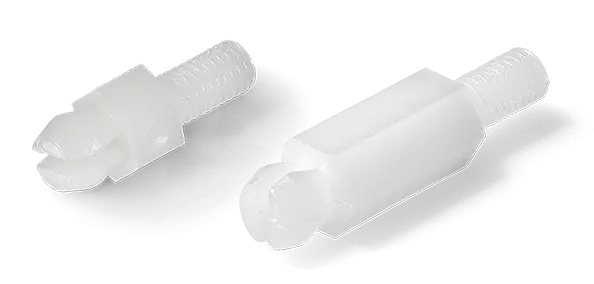

PCB spacer LPR85M3

Spacer for M3 or M4 thread on one side and snap-on mounting on the other. For spacer lengths from 3.2 to 22.2 mm.

Drawing Product enquiry

Quick filter

	405230 LPR 8540-N-M4 OHNE MUTTER	405231 LPR 8540-N-M4 MIT MUTTER	405232 LPR 8541-N-M4 OHNE MUTTER	405233 LPR 8541-N-M4 MIT MUTTER	405234 LPR 8542-N-M4 OHNE MUTTER	405235 LPR 8542-N-M4 MIT MUTTER	405236 LPR 8543-N-M4 OHNE MUTTER	405237 LPR 8543-N-M4 MIT MUTTER	405238 LPR 8544-N-M4 OHNE MUTTER	405239 LPR 8544-N-M4 MIT MUTTER	405240 LPR 8545-N-M4 OHNE MUTTER	405241 LPR 8545-N-M4 MIT MUTTER	405242 LPR 8546-N-M4 OHNE MUTTER	405243 LPR 8546-N-M4 MIT MUTTER	405317 LPR 8530-M3 OHNE MUTTER	405318 LPR 8531-M3 OHNE MUTTER	405319 LPR 8532-M3 OHNE MUTTER	405320 LPR 8533-M3 OHNE MUTTER	405321 LPR 8534-M3 OHNE MUTTER	405322 LPR 8535-M3 OHNE MUTTER	405323 LPR 8536-M3 OHNE MUTTER	405324 LPR 8537-M3 OHNE MUTTER	405325 LPR 8530-M3 MIT MUTTER	405326 LPR 8531-M3 MIT MUTTER	405327 LPR 8532-M3 MIT MUTTER	405328 LPR 8533-M3 MIT MUTTER	405329 LPR 8534-M3 MIT MUTTER	405330 LPR 8535-M3 MIT MUTTER	405331 LPR 8536-M3 MIT MUTTER	405332 LPR 8537-M3 MIT MUTTER
Distance height in mm	3,2	3,2	4,8	4,8	6,4	6,4	9,5	9,5	12,7	12,7	15,9	15,9	19,1	19,1	3,2	4,8	6,4	9,5	12,7	15,9	19,1	22,2	3,2	4,8	6,4	9,5	12,7	15,9	19,1	22,2
Mounting (A "top")	Snap lock	Snap lock	Snap lock	Snap lock	Snap lock	Snap lock	Snap lock	Snap lock	Snap lock	Snap lock	Snap lock	Snap lock	Snap lock	Snap lock	Snap lock	Snap lock	Snap lock	Snap lock	Snap lock	Snap lock	Snap lock	Snap lock	Snap lock	Snap lock	Snap lock	Snap lock	Snap lock	Snap lock	Snap lock	Snap lock
Mounting (B "bottom")	Male thread	Male thread	Male thread	Male thread	Male thread	Male thread	Male thread	Male thread	Male thread	Male thread	Male thread	Male thread	Male thread	Male thread	Male thread	Male thread	Male thread	Male thread	Male thread	Male thread	Male thread	Male thread	Male thread	Male thread	Male thread	Male thread	Male thread	Male thread	Male thread	Male thread
Ø Male thread in mm	M4	M4	M4	M4	M4	M4	M4	M4	M4	M4	M4	M4	M4	M4	M3	M3	M3	M3	M3	M3	M3	M3	M3	M3	94V2	M3	M3	M3	M3	M3
Outer Diameter body in mm	4,75	4,75	4,75	4,75	4,75	4,75	4,75	4,75	4,75	4,75	4,75	4,75	4,75	4,75	4,75	4,75	4,75	4,75	4,75	4,75	4,75	4,75	4,75	4,75	4,75	4,75	4,75	4,75	4,75	4,75
Material	nylon 66	nylon 66	nylon 66	nylon 66	nylon 66	nylon 66	nylon 66	nylon 66	nylon 66	nylon 66	nylon 66	nylon 66	nylon 66	nylon 66	nylon 66	nylon 66	nylon 66	nylon 66	nylon 66	nylon 66	nylon 66	nylon 66	nylon 66	nylon 66	nylon 66	nylon 66	nylon 66	nylon 66	nylon 66	nylon 66
Fire protection class	UL 94 V-2	UL 94 V-2	UL 94 V-2	UL 94 V-2	UL 94 V-2	UL 94 V-2	UL 94 V-2	UL 94 V-2	UL 94 V-2	UL 94 V-2	UL 94 V-2	UL 94 V-2	UL 94 V-2	UL 94 V-2	UL 94 V-2	UL 94 V-2	UL 94 V-2	UL 94 V-2	UL 94 V-2	UL 94 V-2	UL 94 V-2	UL 94 V-2	UL 94 V-2	UL 94 V-2	UL 94 V-2	UL 94 V-2	UL 94 V-2	UL 94 V-2	UL 94 V-2	UL 94 V-2
Colour	natural	natural	natural	natural	natural	natural	natural	natural	natural	natural	natural	natural	natural	natural	natural	natural	natural	natural	natural	natural	natural	natural	natural	natural	natural	natural	natural	natural	natural	natural
Ø Mounting hole (A "top") in mm	3,86	3,86	3,86	3,86	3,86	3,86	3,86	3,86	3,86	3,86	3,86	3,86	3,86	3,86	3,86	3,86	3,86	3,86	3,86	3,86	3,86	3,86	3,86	3,86	3,86	3,86	3,86	3,86	3,86	3,86
Overlap (A "top") in mm	3,6	3,6	3,6	3,6	3,6	3,6	3,6	3,6	3,6	3,6	3,6	3,6	3,6	3,6	3,6	3,6	3,6	3,6	3,6	3,6	3,6	3,6	3,6	3,6	3,6	3,6	3,6	3,6	3,6	3,6
Panel thickness (A "top") in mm	1,57	1,57	1,57	1,57	1,57	1,57	1,57	1,57	1,57	1,57	1,57	1,57	1,57	-	1,57	1,57	1,57	1,57	1,57	1,57	1,57	1,57	1,57	1,57	1,57	1,57	1,57	1,57	1,57	1,57
Panel thickness (B "bottom") in mm	-	-	-	-	-	-	-	-	-	-	-	-	-	1,57	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
