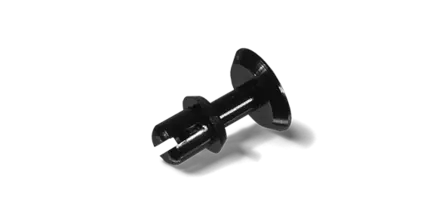

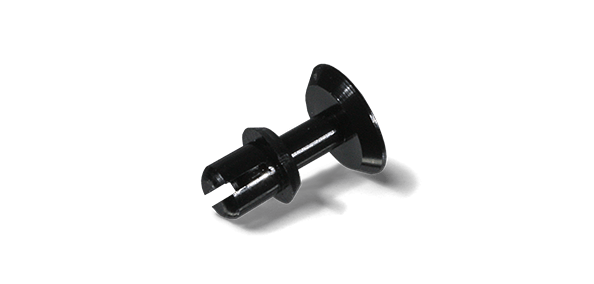

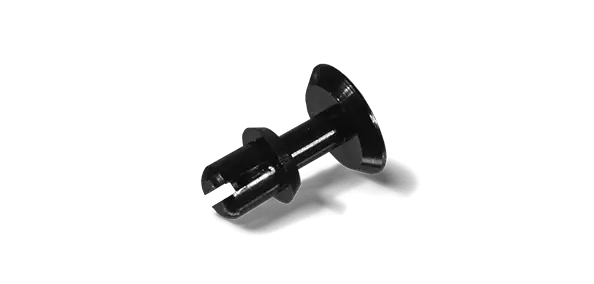

Plastic rivet PNKH
Expanding rivet for hole sizes 3.1 up to 4.2 mm. Cover holes in the panel Ø6.4 or Ø8 mm. For panel thickness from 1 to 8.5 mm. Also used to fix two or more PCBs.
| 402757 PNK H 3035 | 402758 PNK H 3045 | 402759 PNK H 3055 | 402760 PNK H 3065 | 402761 PNK H 3080 | 402762 PNK H 3545 | 402763 PNK H 3555 | 402764 PNK H 3570 | |
|---|---|---|---|---|---|---|---|---|
| Material | nylon 6 | nylon 6 | nylon 6 | nylon 6 | nylon 6 | nylon 6 | nylon 6 | nylon 6 |
| Fire protection class | UL 94 V-2 | UL 94 V-2 | UL 94 V-2 | UL 94 V-2 | UL 94 V-2 | UL 94 V-2 | UL 94 V-2 | - |
| Temperature range | -40 - 115 °C | -40 - 115 °C | -40 - 115 °C | -40 - 115 °C | -40 - 115 °C | -40 - 115 °C | -40 - 115 °C | - |
| Colour | black | black | black | black | black | black | black | black |
| Ø Rivet head in mm | 6,4 | 6,4 | 6,4 | 6 | 6 | 6,4 | 6 | 6,0 |
| Height rivet head in mm | 1 | 1 | 1 | 1 | 1 | 1,0 | 1 | 1,0 |
| Height hull in mm | 3,5 | 4,5 | 5,5 | 6,5 | 8 | 4,5 | 5,5 | 7,0 |
| Rivet diameter in mm | 3 | 3 | 3 | 3 | 3 | 3,5 | 3,5 | 3,5 |
| Shaft length in mm | 6,5 | 6,5 | 6,5 | 10 | 10 | 6,5 | 10 | 10,0 |
| Ø Mounting hole in mm | 3,1 - 3,2 | 3,1 - 3,2 | 3,1 - 3,2 | 3,1 - 3,2 | 3,1 - 3,2 | 3,6 - 3,7 | 3,6 - 3,7 | 3,6 - 3,7 |
| Panel thickness in mm | 1,0 - 2,0 | 2,0 - 3,0 | 3,0 - 4,0 | 4,0 - 5,0 | 5,0 - 6,5 | 2,0 - 3,0 | 3,0 - 4,0 | 4,5 - 5,5 |
| Model | Expanding rivet | Expanding rivet | Expanding rivet | Expanding rivet | Expanding rivet | Expanding rivet | Expanding rivet | Expanding rivet |
