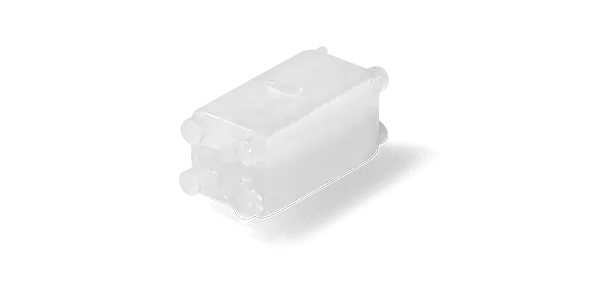

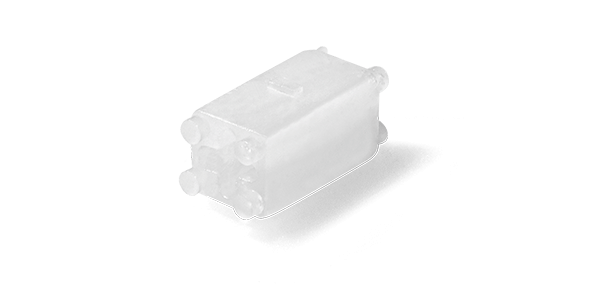

LED spacer ELBL30
LED spacer with feet on both sides in length from 0.25 to 2.5 mm and three types of body length from 1 to 8.6 mm. Spacer enables overall length from 1.5 to 13.7 mm
| 403320 ELB L35-250 | 403321 ELB L35-280 | 403322 ELB L35-310 | 403323 ELB L35-350 | 403524 ELB L30-060 | 403525 ELB L30-080 | 403526 ELB L30-100 | 403527 ELB L30-130 | 403528 ELB L30-150 | 403529 ELB L30-200 | 403530 ELB L31-400 | 403531 ELB L31-460 | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Material | nylon 66 | nylon 66 | nylon 66 | nylon 66 | nylon 66 | nylon 66 | nylon 66 | nylon 66 | nylon 66 | nylon 66 | nylon 66 | nylon 66 |
| Fire protection class | UL 94 V-2 | UL 94 V-2 | UL 94 V-2 | UL 94 V-2 | UL 94 V-2 | UL 94 V-2 | UL 94 V-2 | UL 94 V-2 | UL 94 V-2 | UL 94 V-2 | UL 94 V-2 | UL 94 V-2 |
| Colour | natural | natural | natural | natural | natural | natural | natural | natural | natural | natural | natural | natural |
| Height "H" in mm | 6,5 | 7,1 | 7,9 | 8,9 | 1,5 | 2 | 2,5 | 3,3 | 3,8 | 5,1 | 10,2 | 11,7 |
| Number of employed LEDs | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| T in mm | 3,8 | 3,8 | 3,8 | 3,8 | 1 | 1 | 1 | 1 | 1 | 1 | 8,6 | 8,6 |
| F in mm | 1,3 | 1,7 | 2,0 | 2,5 | 0,25 | 0,51 | 0,76 | 1,1 | 1,4 | 2 | 0,76 | 1,5 |
| LED Size | 3 mm and 5 mm | 3 mm and 5 mm | 3 mm and 5 mm | 3 mm and 5 mm | 3 mm and 5 mm | 3 mm and 5 mm | 3 mm and 5 mm | 3 mm and 5 mm | 3 mm and 5 mm | 3 mm and 5 mm | 3 mm and 5 mm | 3 mm and 5 mm |
