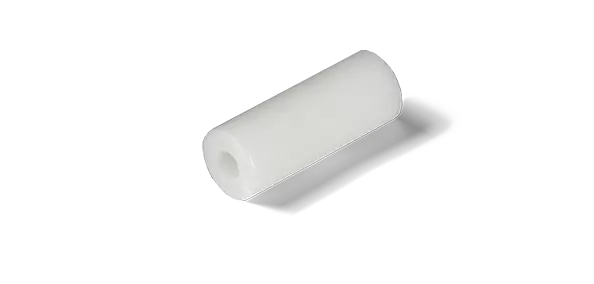

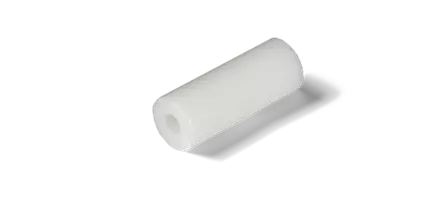

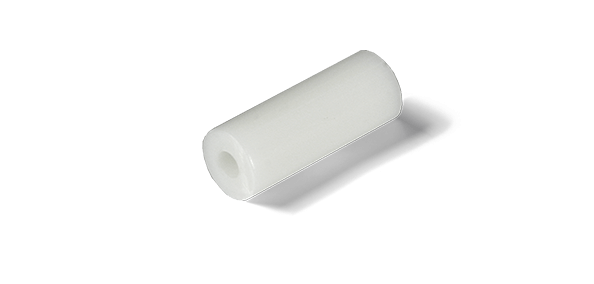

PCB distance tube ELB90

Universal insulating tube with inner diameters from 0.8 to 3.7 mm available in the distance length 1 to 30 mm for each full millimetre

Drawing Product enquiry

Quick filter

	403374 ELB 9020-010	403375 ELB 9020-020	403376 ELB 9020-040	403377 ELB 9020-060	403378 ELB 9020-080	403379 ELB 9020-100	403380 ELB 9020-120	403381 ELB 9020-140	403382 ELB 9020-160	403384 ELB 9020-200	403385 ELB 9020-220	403386 ELB 9020-240	403387 ELB 9020-260	403388 ELB 9020-280	403389 ELB 9020-300	403410 ELB 9040-010	403411 ELB 9040-020	403412 ELB 9040-040	403413 ELB 9040-060	403414 ELB 9040-080	403415 ELB 9040-100	403419 ELB 9040-180	403420 ELB 9040-200	403421 ELB 9040-220	403422 ELB 9040-240	403423 ELB 9040-260	403424 ELB 9040-280	403425 ELB 9040-300	403478 ELB 9050-010	403479 ELB 9050-020	403480 ELB 9050-040	403481 ELB 9050-060	403482 ELB 9050-080	403484 ELB 9050-120	403485 ELB 9050-140	403486 ELB 9050-160	403487 ELB 9050-180	403488 ELB 9050-200	403489 ELB 9050-220	403490 ELB 9050-240	403491 ELB 9050-260	403492 ELB 9050-280	403493 ELB 9050-300	403496 ELB 9130-010	403497 ELB 9130-020	403498 ELB 9130-040	403499 ELB 9130-060	403500 ELB 9130-080	403501 ELB 9130-100	403502 ELB 9130-120	403503 ELB 9130-140	403504 ELB 9130-160	403505 ELB 9130-180	403506 ELB 9130-200	403507 ELB 9130-220	403508 ELB 9130-240	403509 ELB 9130-260	403510 ELB 9130-280	403511 ELB 9130-300	405947 ELB 9040-050	407127 ELB 9070-010	407128 ELB 9070-020	407129 ELB 9070-040	407130 ELB 9070-060	407131 ELB 9070-080	407132 ELB 9070-100	407133 ELB 9070-120	407134 ELB 9070-140	407135 ELB 9070-160	407136 ELB 9070-180	407137 ELB 9070-200	407138 ELB 9070-220	407139 ELB 9070-240	407140 ELB 9070-260	407141 ELB 9070-280	407142 ELB 9070-300	407159 ELB 9100-010	407160 ELB 9100-020	407161 ELB 9100-040	407162 ELB 9100-060	407163 ELB 9100-080	407164 ELB 9100-100	407165 ELB 9100-120	407166 ELB 9100-140	407167 ELB 9100-160	407168 ELB 9100-180	407169 ELB 9100-200	407170 ELB 9100-220	407171 ELB 9100-240	407172 ELB 9100-260	407173 ELB 9100-280	407174 ELB 9100-300	407235 ELB 9140-080	407279 ELB 9150-010	410767 ELB 9100-045
Distance height in mm	1,0	2,0	4,0	6,0	8,0	10,0	12,0	14,0	16,0	20,0	22,0	24,0	26,0	28,0	30,0	1,0	2,0	4,0	6,0	8,0	10,0	18,0	20,0	22,0	24,0	26,0	28,0	30,0	1,0	2,0	4,0	6,0	8,0	12,0	14,0	16,0	18,0	20,0	22,0	24,0	26,0	28,0	30,0	1,0	2,0	4,0	6,0	8,0	10,0	12,0	14,0	16,0	18,0	20,0	22,0	24,0	26,0	28,0	30,0	5,0	1,0	2,0	4,0	6,0	8,0	10,0	12,0	14,0	16,0	18,0	20,0	22,0	24,0	26,0	28,0	30,0	1,0	2,0	4,0	6,0	8,0	10,0	12,0	14,0	16,0	18,0	20,0	22,0	24,0	26,0	28,0	30,0	8,0	1,0	4,5
Model	Hull	Hull	Hull	Hull	Hull	Hull	Hull	Hull	Hull	Hull	Hull	Hull	Hull	Hull	Hull	Hull	Hull	Hull	Hull	Hull	Hull	Hull	Hull	Hull	Hull	Hull	Hull	Hull	Hull	Hull	Hull	Hull	Hull	Hull	Hull	Hull	Hull	Hull	Hull	Hull	Hull	Hull	Hull	Hull	Hull	Hull	Hull	Hull	Hull	Hull	Hull	Hull	Hull	Hull	Hull	Hull	Hull	Hull	Hull	Hull	Hull	Hull	Hull	Hull	Hull	Hull	Hull	Hull	Hull	Hull	Hull	Hull	Hull	Hull	Hull	Hull	Hull	Hull	Hull	Hull	Hull	Hull	Hull	Hull	Hull	Hull	Hull	Hull	Hull	Hull	Hull	Hull	Hull	Hull	Hull
Material	nylon 6	nylon 6	nylon 6	nylon 6	nylon 6	nylon 6	nylon 6	nylon 6	nylon 6	nylon 6	nylon 6	nylon 6	nylon 6	nylon 6	nylon 6	nylon 6	nylon 6	nylon 6	nylon 6	nylon 6	nylon 6	nylon 6	nylon 6	nylon 6	nylon 6	nylon 6	nylon 6	nylon 6	nylon 6	nylon 6	nylon 6	nylon 6	nylon 6	nylon 6	nylon 6	nylon 6	nylon 6	nylon 6	nylon 6	nylon 6	nylon 6	nylon 6	nylon 6	nylon 6	nylon 6	nylon 6	nylon 6	nylon 6	nylon 6	nylon 6	nylon 6	nylon 6	nylon 6	nylon 6	nylon 6	nylon 6	nylon 6	nylon 6	nylon 6	nylon 6	nylon 6	nylon 6	nylon 6	nylon 6	nylon 6	nylon 6	nylon 6	nylon 6	nylon 6	nylon 6	nylon 6	nylon 6	nylon 6	nylon 6	nylon 6	nylon 6	nylon 6	nylon 6	nylon 6	nylon 6	nylon 6	nylon 6	nylon 6	nylon 6	nylon 6	nylon 6	nylon 6	nylon 6	nylon 6	nylon 6	nylon 6	nylon 6	nylon 6	nylon 6	nylon 6
Fire protection class	UL 94 V-2	UL 94 V-2	UL 94 V-2	UL 94 V-2	UL 94 V-2	UL 94 V-2	UL 94 V-2	UL 94 V-2	UL 94 V-2	UL 94 V-2	UL 94 V-2	UL 94 V-2	UL 94 V-2	UL 94 V-2	UL 94 V-2	UL 94 V-2	UL 94 V-2	UL 94 V-2	UL 94 V-2	UL 94 V-2	UL 94 V-2	UL 94 V-2	UL 94 V-2	UL 94 V-2	UL 94 V-2	UL 94 V-2	UL 94 V-2	UL 94 V-2	UL 94 V-2	UL 94 V-2	UL 94 V-2	UL 94 V-2	UL 94 V-2	UL 94 V-2	UL 94 V-2	UL 94 V-2	UL 94 V-2	UL 94 V-2	UL 94 V-2	UL 94 V-2	UL 94 V-2	UL 94 V-2	UL 94 V-2	UL 94 V-2	UL 94 V-2	UL 94 V-2	UL 94 V-2	UL 94 V-2	UL 94 V-2	UL 94 V-2	UL 94 V-2	UL 94 V-2	UL 94 V-2	UL 94 V-2	UL 94 V-2	UL 94 V-2	UL 94 V-2	UL 94 V-2	UL 94 V-2	UL 94 V-2	UL 94 V-2	UL 94 V-2	UL 94 V-2	UL 94 V-2	UL 94 V-2	UL 94 V-2	UL 94 V-2	UL 94 V-2	UL 94 V-2	UL 94 V-2	UL 94 V-2	UL 94 V-2	UL 94 V-2	UL 94 V-2	UL 94 V-2	UL 94 V-2	UL 94 V-2	UL 94 V-2	UL 94 V-2	UL 94 V-2	UL 94 V-2	UL 94 V-2	UL 94 V-2	UL 94 V-2	UL 94 V-2	UL 94 V-2	UL 94 V-2	UL 94 V-2	UL 94 V-2	UL 94 V-2	UL 94 V-2	UL 94 V-2	UL 94 V-2	UL 94 V-2	UL 94 V-2
Colour	white	white	white	white	white	white	white	white	white	white	white	white	white	white	white	white	white	white	white	white	white	white	white	white	white	white	white	white	white	white	white	white	white	white	white	white	white	white	white	white	white	white	white	white	white	white	white	white	white	white	white	white	white	white	white	white	white	white	white	white	white	white	white	white	white	white	white	white	white	white	white	white	white	white	white	white	white	white	white	white	white	white	white	white	white	white	white	white	white	white	white	white	white	white	white
Ø Inner in mm	0,81	0,81	0,81	0,81	0,81	0,81	0,81	0,81	0,81	0,81	0,81	0,81	0,81	0,81	0,81	1,2	1,2	1,2	1,2	1,2	1,2	1,2	1,2	1,2	1,2	1,2	1,2	1,2	2,2	2,2	2,2	2,2	2,2	2,2	2,2	2,2	2,2	2,2	2,2	2,2	2,2	2,2	2,2	3,7	3,7	3,7	3,7	3,7	3,7	3,7	3,7	3,7	3,7	3,7	3,7	3,7	3,7	3,7	3,7	1,2	2,7	2,7	2,7	2,7	2,7	2,7	2,7	2,7	2,7	2,7	2,7	2,7	2,7	2,7	2,7	2,7	3,2	3,2	3,2	3,2	3,2	3,2	3,2	3,2	3,2	3,2	3,2	3,2	3,2	3,2	3,2	3,2	4,3	2,3	3,2
Ø Outer in mm	2,2	2,2	2,2	2,2	2,2	2,2	2,2	2,2	2,2	2,2	2,2	2,2	2,2	2,2	2,2	3,2	3,2	3,2	3,2	3,2	3,2	3,2	3,2	3,2	3,2	3,2	3,2	3,2	3,8	3,8	3,8	3,8	3,8	3,8	3,8	3,8	3,8	3,8	3,8	3,8	3,8	3,8	3,8	6,4	6,4	6,4	6,4	6,4	6,4	6,4	6,4	6,4	6,4	6,4	6,4	6,4	6,4	6,4	6,4	3,2	4,2	4,2	4,2	4,2	4,2	4,2	4,2	4,2	4,2	4,2	4,2	4,2	4,2	4,2	4,2	4,2	4,7	4,7	4,7	4,7	4,7	4,7	4,7	4,7	4,7	4,7	4,7	4,7	4,7	4,7	4,7	4,7	6,4	3,2	4,7
