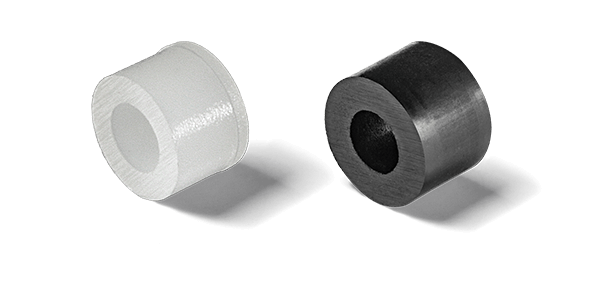

PCB Distanzhülse LPR90
Universal-Isolierröhrchen mit verschiedenen Innendurchmessern und Abstandslängen.
| 404516 LPR 9040-N | 404517 LPR 9041-N | 404519 LPR 9043-N | 404520 LPR 9044-N | 404522 LPR 9046-N | 404524 LPR 9048-N | 404528 LPR 9052-SW | 404535 LPR 9060-SW | 404536 LPR 9061-SW | 407338 LPR 9066-SW | 408301 LPR 9063-SW | 408587 LPR 9063-N | 408593 LPR 9072-N | 408602 LPR 9080-N | 408603 LPR 9080-SW | 408614 LPR 9091-SW | 408620 LPR 9096-N | 408621 LPR 9096-SW | 408623 LPR 9098-N | 408669 LPR 9098-SW | 409677 LPR 9048-SW | 409678 LPR 9060-N | 409679 LPR 9061-N | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Distanzhöhe in mm | 3,0 | 5,0 | 3,0 | 5,0 | 3,0 | 5,0 | 10,0 | 4,0 | 5,0 | 15,0 | 5,0 | 5,0 | 4,0 | 4,0 | 4,0 | 4,0 | 5,0 | 5,0 | 5,0 | 5,0 | 5,0 | 4,0 | 5,0 |
| Bauart | Hülse | Hülse | Hülse | Hülse | Hülse | Hülse | Hülse | Hülse | Hülse | Hülse | Hülse | Hülse | Hülse | Hülse | Hülse | Hülse | Hülse | Hülse | Hülse | Hülse | Hülse | Hülse | Hülse |
| Material | Nylon 66 | Nylon 66 | Nylon 66 | Nylon 66 | Nylon 6.6 glasfaserverstärkt | Nylon 6.6 glasfaserverstärkt | Nylon 6.6 glasfaserverstärkt | Nylon 6.6 glasfaserverstärkt | Nylon 6.6 glasfaserverstärkt | Nylon 6.6 glasfaserverstärkt | Nylon 6.6 glasfaserverstärkt | Nylon 66 | Nylon 66 | Nylon 66 | Nylon 6.6 glasfaserverstärkt | Nylon 6.6 glasfaserverstärkt | Nylon 66 | Nylon 6.6 glasfaserverstärkt | Nylon 66 | Nylon 6.6 glasfaserverstärkt | Nylon 6.6 glasfaserverstärkt | Nylon 66 | Nylon 66 |
| Brandschutzklasse | UL 94 V-2 | UL 94 V-2 | UL 94 V-2 | UL 94 V-2 | UL 94 HB | UL 94 HB | UL 94 HB | UL 94 HB | UL 94 HB | UL 94 HB | UL 94 HB | UL 94 HB | UL 94 HB | UL 94 HB | UL 94 HB | UL 94 HB | UL 94 HB | UL 94 HB | UL 94 HB | UL 94 HB | UL 94 HB | UL 94 HB | UL 94 HB |
| Farbe | natur | natur | natur | natur | natur | natur | schwarz | schwarz | schwarz | schwarz | schwarz | natur | natur | natur | schwarz | schwarz | natur | schwarz | natur | schwarz | schwarz | natur | natur |
| Ø Innen in mm | 2,4 | 2,4 | 2,7 | 2,7 | 3,2 | 3,2 | 4,0 | 4,3 | 4,3 | 5,1 | 5,0 | 5,0 | 5,3 | 6,0 | 6,0 | 6,3 | 7,0 | 7,0 | 8,0 | 8,0 | 3,2 | 4,3 | 4,3 |
| Ø Außen in mm | 4,5 | 4,5 | 5,0 | 5,0 | 7,0 | 7,0 | 6,0 | 10,0 | 10,0 | 8,0 | 14,0 | 14,0 | 10,0 | 10,0 | 10,0 | 20,0 | 14,0 | 14,0 | 14,0 | 14,0 | 7,0 | 10,0 | 10,0 |
