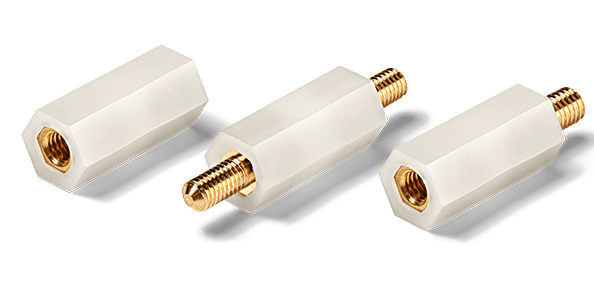

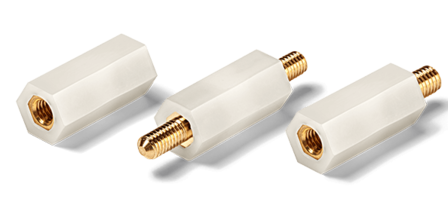

PCB Abstandsbolzen PEGS
Sechskant-Abstandsbolzen mit Metallgewinde M3 bis M5 in Typ A, B und C für Abstandslängen von 15 bis 75 mm
| 404642 PEG S-M3-15-A | 404643 PEG S-M3-15-B | 404644 PEG S-M3-15-C | 404645 PEG S-M3-20-A | 404646 PEG S-M3-20-B | 404647 PEG S-M3-20-C | 404648 PEG S-M3-25-A | 404649 PEG S-M3-25-B | 404650 PEG S-M3-25-C | 404651 PEG S-M3-30-A | 404652 PEG S-M3-30-B | 404653 PEG S-M3-30-C | 404654 PEG S-M3-35-A | 404655 PEG S-M3-35-B | 404656 PEG S-M3-35-C | 404657 PEG S-M3-40-A | 404658 PEG S-M3-40-B | 404659 PEG S-M3-40-C | 404660 PEG S-M3-45-A | 404661 PEG S-M3-45-B | 404662 PEG S-M3-45-C | 404663 PEG S-M3-50-A | 404664 PEG S-M3-50-B | 404665 PEG S-M3-50-C | 404666 PEG S-M4-15-A | 404667 PEG S-M4-15-B | 404668 PEG S-M4-15-C | 404669 PEG S-M4-20-A | 404670 PEG S-M4-20-B | 404671 PEG S-M4-20-C | 404672 PEG S-M4-25-A | 404673 PEG S-M4-25-B | 404674 PEG S-M4-25-C | 404675 PEG S-M4-30-A | 404676 PEG S-M4-30-B | 404677 PEG S-M4-30-C | 404678 PEG S-M4-35-A | 404679 PEG S-M4-35-B | 404680 PEG S-M4-35-C | 404681 PEG S-M4-40-A | 404682 PEG S-M4-40-B | 404683 PEG S-M4-40-C | 404684 PEG S-M4-45-A | 404685 PEG S-M4-45-B | 404686 PEG S-M4-45-C | 404687 PEG S-M4-50-A | 404688 PEG S-M4-50-B | 404689 PEG S-M4-50-C | 406275 PEG S-M4-55-A | 406276 PEG S-M4-60-A | 406277 PEG S-M4-65-A | 406278 PEG S-M4-70-A | 406279 PEG S-M4-75-A | 406285 PEG S-M4-55-B | 406286 PEG S-M4-60-B | 406287 PEG S-M4-65-B | 406288 PEG S-M4-70-B | 406289 PEG S-M4-75-B | 406295 PEG S-M4-55-C | 406296 PEG S-M4-60-C | 406297 PEG S-M4-65-C | 406298 PEG S-M4-70-C | 406299 PEG S-M4-75-C | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Distanzhöhe in mm | 15,0 | 15,0 | 15,0 | 20,0 | 20,0 | 20,0 | 25,0 | 25,0 | 25,0 | 30,0 | 30,0 | 30,0 | 35,0 | 35,0 | 35,0 | 40,0 | 40,0 | 40,0 | 45,0 | 45,0 | 45,0 | 50,0 | 50,0 | 50,0 | 15,0 | 15,0 | 15,0 | 20,0 | 20,0 | 20,0 | 25,0 | 25,0 | 25,0 | 30,0 | 30,0 | 30,0 | 35,0 | 35,0 | 35,0 | 40,0 | 40,0 | 40,0 | 45,0 | 45,0 | 45,0 | 50,0 | 50,0 | 50,0 | 55,0 | 60,0 | 65,0 | 70,0 | 75,0 | 55,0 | 60,0 | 65,0 | 70,0 | 75,0 | 55,0 | 60,0 | 65,0 | 70,0 | 75,0 |
| Bauart | Typ A (Außen-/ Außen) | Typ B (Außen/ Innen) | Typ C (Innen/ Innen) | Typ A (Außen-/ Außen) | Typ B (Außen/ Innen) | Typ C (Innen/ Innen) | Typ A (Außen-/ Außen) | Typ B (Außen/ Innen) | Typ C (Innen/ Innen) | Typ A (Außen-/ Außen) | Typ B (Außen/ Innen) | Typ C (Innen/ Innen) | Typ A (Außen-/ Außen) | Typ B (Außen/ Innen) | Typ C (Innen/ Innen) | Typ A (Außen-/ Außen) | Typ B (Außen/ Innen) | Typ C (Innen/ Innen) | Typ A (Außen-/ Außen) | Typ B (Außen/ Innen) | Typ C (Innen/ Innen) | Typ A (Außen-/ Außen) | Typ B (Außen/ Innen) | Typ C (Innen/ Innen) | Typ A (Außen-/ Außen) | Typ B (Außen/ Innen) | Typ C (Innen/ Innen) | Typ A (Außen-/ Außen) | Typ B (Außen/ Innen) | Typ C (Innen/ Innen) | Typ A (Außen-/ Außen) | Typ B (Außen/ Innen) | Typ C (Innen/ Innen) | Typ A (Außen-/ Außen) | Typ B (Außen/ Innen) | Typ C (Innen/ Innen) | Typ A (Außen-/ Außen) | Typ B (Außen/ Innen) | Typ C (Innen/ Innen) | Typ A (Außen-/ Außen) | Typ B (Außen/ Innen) | Typ C (Innen/ Innen) | Typ A (Außen-/ Außen) | Typ B (Außen/ Innen) | Typ C (Innen/ Innen) | Typ A (Außen-/ Außen) | Typ B (Außen/ Innen) | Typ C (Innen/ Innen) | Typ A (Außen-/ Außen) | Typ A (Außen-/ Außen) | Typ A (Außen-/ Außen) | Typ A (Außen-/ Außen) | Typ A (Außen-/ Außen) | Typ B (Außen/ Innen) | Typ B (Außen/ Innen) | Typ B (Außen/ Innen) | Typ B (Außen/ Innen) | Typ B (Außen/ Innen) | Typ C (Innen/ Innen) | Typ C (Innen/ Innen) | Typ C (Innen/ Innen) | Typ C (Innen/ Innen) | Typ C (Innen/ Innen) |
| Ø Innengewinde in mm | - | M3 | M3 | - | M3 | M3 | - | M3 | M3 | - | M3 | M3 | - | M3 | M3 | - | M3 | M3 | - | M3 | M3 | - | M3 | M3 | - | M4 | M4 | - | M4 | M4 | - | M4 | M4 | - | M4 | M4 | - | M4 | M4 | - | M4 | M4 | - | M4 | M4 | - | M4 | M4 | - | - | - | - | - | M4 | M4 | M4 | M4 | M4 | M4 | M4 | M4 | M4 | M4 |
| Gewindetiefe (innen) in mm | - | 6 | 6 | - | 6 | 6 | - | 6 | 6 | - | 6 | 6 | - | 6 | 6 | - | 6 | 6 | - | 6 | 6 | - | 6 | 6 | - | 6 | 6 | - | 6 | 6 | - | 6 | 6 | - | 6 | 6 | - | 6 | 6 | - | 6 | 6 | - | 6 | 6 | - | 6 | 6 | - | - | - | - | - | 6 | 6 | 6 | 6 | 6 | 6,0 | 6,0 | 6,0 | 6,0 | 6,0 |
| Ø Außengewinde in mm | M3 | M3 | - | M3 | M3 | - | M3 | M3 | - | M3 | M3 | - | M3 | M3 | - | M3 | M3 | - | M3 | M3 | - | M3 | M3 | - | M4 | M4 | - | M4 | M4 | - | M4 | M4 | - | M4 | M4 | - | M4 | M4 | - | M4 | M4 | - | M4 | M4 | - | M4 | M4 | - | M4 | M4 | M4 | M4 | M4 | M4 | M4 | M4 | M4 | M4 | - | - | - | - | - |
| Gewindelänge (außen) in mm | 6,0 | 6,0 | - | 6,0 | 6,0 | - | 6,0 | 6,0 | - | 6,0 | 6,0 | - | 6,0 | 6,0 | - | 6,0 | 6,0 | - | 6,0 | 6,0 | - | 6,0 | 6,0 | - | 6,0 | 6,0 | - | 6,0 | 6,0 | - | 6,0 | 6,0 | - | 6,0 | 6,0 | - | 6,0 | 6,0 | - | 6,0 | 6,0 | - | 6,0 | 6,0 | - | 6,0 | 6,0 | - | 6,0 | 6,0 | 6,0 | 6,0 | 6,0 | 6,0 | 6,0 | 6,0 | 6,0 | 6,0 | - | - | - | - | - |
| Außendurchmesser Körper in mm | 6,35 | 6,35 | 6,35 | 6,35 | 6,35 | 6,35 | 6,35 | 6,35 | 6,35 | 6,35 | 6,35 | 6,35 | 6,35 | 6,35 | 6,35 | 6,35 | 6,35 | 6,35 | 6,35 | 6,35 | 6,35 | 6,35 | 6,35 | 6,35 | 8,0 | 8,0 | 8,0 | 8,0 | 8,0 | 8,0 | 8,0 | 8,0 | 8,0 | 8,0 | 8,0 | 8,0 | 8,0 | 8,0 | 8,0 | 8,0 | 8,0 | 8,0 | 8,0 | 8,0 | 8,0 | 8,0 | 8,0 | 8,0 | 8,0 | 8,0 | 8,0 | 8,0 | 8,0 | 8,0 | 8,0 | 8,0 | 8,0 | 8,0 | 8,0 | 8,0 | 8,0 | 8,0 | 8,0 |
| Material | Nylon 66 | Nylon 66 | Nylon 66 | Nylon 66 | Nylon 66 | Nylon 66 | Nylon 66 | Nylon 66 | Nylon 66 | Nylon 66 | Nylon 66 | Nylon 66 | Nylon 66 | Nylon 66 | Nylon 66 | Nylon 66 | Nylon 66 | Nylon 66 | Nylon 66 | Nylon 66 | Nylon 66 | Nylon 66 | Nylon 66 | Nylon 66 | Nylon 66 | Nylon 66 | Nylon 66 | Nylon 66 | Nylon 66 | Nylon 66 | Nylon 66 | Nylon 66 | Nylon 66 | Nylon 66 | Nylon 66 | Nylon 66 | Nylon 66 | Nylon 66 | Nylon 66 | Nylon 66 | Nylon 66 | Nylon 66 | Nylon 66 | Nylon 66 | Nylon 66 | Nylon 66 | Nylon 66 | Nylon 66 | Nylon 66 | Nylon 66 | Nylon 66 | Nylon 66 | Nylon 66 | Nylon 66 | Nylon 66 | Nylon 66 | Nylon 66 | Nylon 66 | Nylon 66 | Nylon 66 | Nylon 66 | Nylon 66 | Nylon 66 |
| Material Gewinde | Messing | Messing | Messing | Messing | Messing | Messing | Messing | Messing | Messing | Messing | Messing | Messing | Messing | Messing | Messing | Messing | Messing | Messing | Messing | Messing | Messing | Messing | Messing | Messing | Messing | Messing | Messing | Messing | Messing | Messing | Messing | Messing | Messing | Messing | Messing | Messing | Messing | Messing | Messing | Messing | Messing | Messing | Messing | Messing | Messing | Messing | Messing | Messing | Messing | Messing | Messing | Messing | Messing | Messing | Messing | Messing | Messing | Messing | Messing | Messing | Messing | Messing | Messing |
| Brandschutzklasse | UL 94 HB | UL 94 HB | UL 94 HB | UL 94 HB | UL 94 HB | UL 94 HB | UL 94 HB | UL 94 HB | UL 94 HB | UL 94 HB | UL 94 HB | UL 94 HB | UL 94 HB | UL 94 HB | UL 94 HB | UL 94 HB | UL 94 HB | UL 94 HB | UL 94 HB | UL 94 HB | UL 94 HB | UL 94 HB | UL 94 HB | UL 94 HB | UL 94 HB | UL 94 HB | UL 94 HB | UL 94 HB | UL 94 HB | UL 94 HB | UL 94 HB | UL 94 HB | UL 94 HB | UL 94 HB | UL 94 HB | UL 94 HB | UL 94 HB | UL 94 HB | UL 94 HB | UL 94 HB | UL 94 HB | UL 94 HB | UL 94 HB | UL 94 HB | UL 94 HB | UL 94 HB | UL 94 HB | UL 94 HB | UL 94 HB | UL 94 HB | UL 94 HB | UL 94 HB | UL 94 HB | UL 94 HB | UL 94 HB | UL 94 HB | UL 94 HB | UL 94 HB | UL 94 HB | UL 94 HB | UL 94 HB | UL 94 HB | UL 94 HB |
| Temperaturbereich in °C | -30°C - +85°C | -30°C - +85°C | -30°C - +85°C | -30°C - +85°C | -30°C - +85°C | -30°C - +85°C | -30°C - +85°C | -30°C - +85°C | -30°C - +85°C | -30°C - +85°C | -30°C - +85°C | -30°C - +85°C | -30°C - +85°C | -30°C - +85°C | -30°C - +85°C | -30°C - +85°C | -30°C - +85°C | -30°C - +85°C | -30°C - +85°C | -30°C - +85°C | -30°C - +85°C | -30°C - +85°C | -30°C - +85°C | -30°C - +85°C | -30°C - +85°C | -30°C - +85°C | -30°C - +85°C | -30°C - +85°C | -30°C - +85°C | -30°C - +85°C | -30°C - +85°C | -30°C - +85°C | -30°C - +85°C | -30°C - +85°C | -30°C - +85°C | -30°C - +85°C | -30°C - +85°C | -30°C - +85°C | -30°C - +85°C | -30°C - +85°C | -30°C - +85°C | -30°C - +85°C | -30°C - +85°C | -30°C - +85°C | -30°C - +85°C | -30°C - +85°C | -30°C - +85°C | -30°C - +85°C | -30°C - +85°C | -30°C - +85°C | -30°C - +85°C | -30°C - +85°C | -30°C - +85°C | -30°C - +85°C | -30°C - +85°C | -30°C - +85°C | -30°C - +85°C | -30°C - +85°C | -30°C - +80°C | -30°C - +85°C | -30°C - +80°C | -30°C - +80°C | -30°C - +80°C |
| Farbe | natur | natur | natur | natur | natur | natur | natur | natur | natur | natur | natur | natur | natur | natur | natur | natur | natur | natur | natur | natur | natur | natur | natur | natur | natur | natur | natur | natur | natur | natur | natur | natur | natur | natur | natur | natur | natur | natur | natur | natur | natur | natur | natur | natur | natur | natur | natur | natur | natur | natur | natur | natur | natur | natur | natur | natur | natur | natur | natur | natur | natur | natur | natur |
