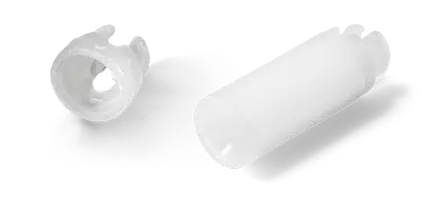

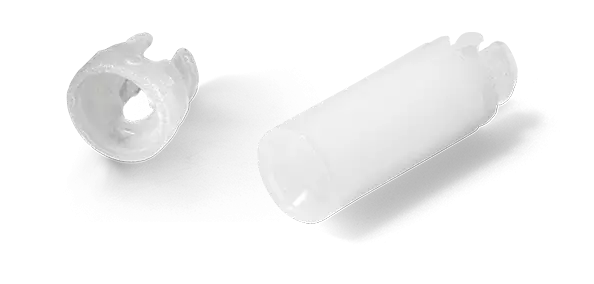

PCB spacer LPR902M3

One-sided snap-in spacer with additional M3 screw. For spacer lengths from 3.2 to 15.9 mm. Easy to fit and stackable.


402412
LPR 9020-M3
402413
LPR 9021-M3
402414
LPR 9022-M3
402415
LPR 9023-M3
402416
LPR 9024-M3
402417
LPR 9025-M3
Distance height in mm 3,2 4,8 6,4 9,5 12,7 15,9
Mounting (A "top") Snap lock Snap lock Snap lock Snap lock Snap lock Snap lock
Mounting (B "bottom") Female thread Female thread Female thread Female thread Female thread Female thread
Ø Female thread in mm M3 M3 M3 M3 M3 M3
Outer Diameter body in mm 6,6 6,6 6,6 6,6 6,6 6,6
Material nylon 66 nylon 66 nylon 66 nylon 66 nylon 66 nylon 66
Fire protection class UL 94 V-2 UL 94 V-2 UL 94 V-2 UL 94 V-2 UL 94 V-2 UL 94 V-2
Colour natural natural natural natural natural natural
Ø Mounting hole (A "top") in mm 4,75 4,75 4,75 4,75 4,75 4,75
Overlap (A "top") in mm 3,2 3,2 3,2 3,2 3,2 3,2
Panel thickness (A "top") in mm 1,57 1,57 1,57 1,57 1,57 1,57
