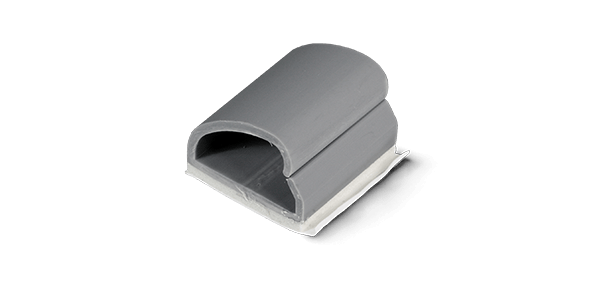

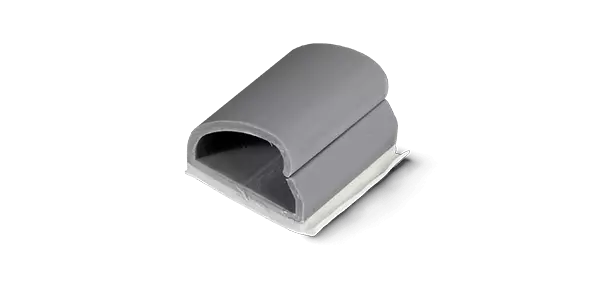

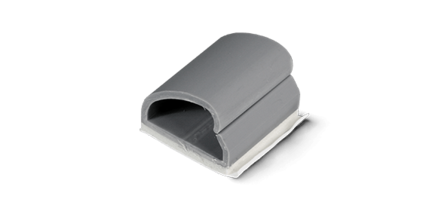

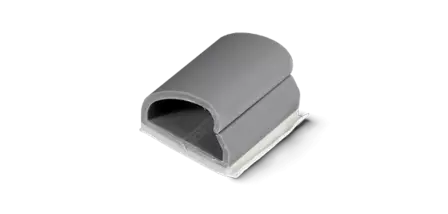

Plastic cable clamp LPR530

Cable clamp with adhesive film mounting. For holding cables with diameters from 3.2 up to 25.4 mm. The clip offers a secure hold and enables easy exchange.


400959
LPR 5300 RUNDKABELHALTER
403588
LPR 5301 RUNDKABELHALTER
Assembly type with adhesive tape with adhesive tape
Type Type 1 Type 2
Material PVC PVC
Fire protection class UL 94 V-0 UL 94 V-0
Colour grey grey
Material adhesive film acrylic based acrylic based
Height in mm 10,9 10,2
Ø Bundle/ Cable in mm 5,6 6,4
Blocking mechanism locking locking
Type of cable round cable round cable
Component width in mm 19,1 12,7
Component length in mm 19,1 12,7
