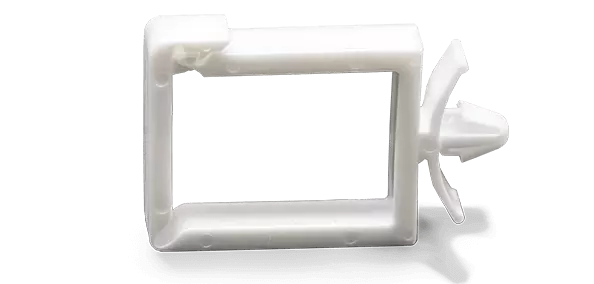

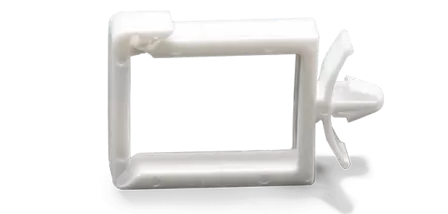

Cable clip ESS1000

Cable clip for snap-on mounting. With snap-in mechanism for cable bundles in 5 different sizes


407860
ESS 1000 LEITUNGSHALTER
407861
ESS 1001 LEITUNGSHALTER
407862
ESS 1002 LEITUNGSHALTER
407863
ESS 1003 LEITUNGSHALTER
407864
ESS 1004 LEITUNGSHALTER
Assembly type plug in mounting plug in mounting plug in mounting plug in mounting plug in mounting
Material nylon 66 nylon 66 nylon 66 nylon 66 nylon 66
Fire protection class UL 94 V-0 UL 94 V-0 UL 94 V-0 UL 94 V-0 UL 94 V-0
Colour white white white white white
Ø Mounting hole (B "bottom") in mm 4,8 4,8 4,8 4,8 4,8
Panel thickness in mm 0,6 - 2,0 0,6 - 2,0 0,6 - 2,0 0,6 - 2,0 2,0 - 3,2
Height in mm 13,8 18,8 24,8 32,1 33,3
Ø Bundle/ Cable in mm 6,0 11,1 16,4 22,5 22,5
Type of cable round cable round cable round cable round cable round cable
Component width in mm 5,0 5,0 5,5 6,0 6,0
Component length in mm 16,7 17,3 19,0 24,5 24,5
