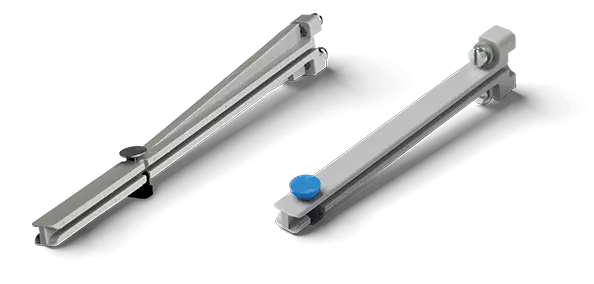

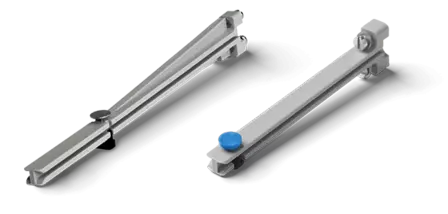

PCB guide LPR21

Screwable vertical PCB guide in lengths from 46.5 to 160 mm for 1.6 mm PCB thickness

Filtro rápido

	402349 LPR 2110 LEITERPLATTENFÜHRUNG	402350 LPR 2111 LEITERPLATTENFÜHRUNG	402351 LPR 2112 LEITERPLATTENFÜHRUNG	402352 LPR 2114 LEITERPLATTENFÜHRUNG
Assembly type	screwed	screwed	screwed	screwed
Type	Type A	Type A	Type A	Type B
Material	nylon 6	nylon 6	nylon 6	nylon 6
Colour	grey	grey	grey	grey
(A) length-overall in mm	65,0	90,0	135,0	160,0
width foot socket in mm	18	18	19	19,0
Groove depth in mm	3,0	3,0	3,0	3,0
Height foot socket in mm	7,4	7,4	7,4	7,4
Hole Diameter for mounting in mm	M3x0,5	M3x0,5	M3x0,5	M3x0,5
for PCB thickness	1,6	1,6	1,6	1,6
Temperature range	-20°C - 140°C	-20°C - 140°C	-20°C - 140°C	-20°C - 140°C
