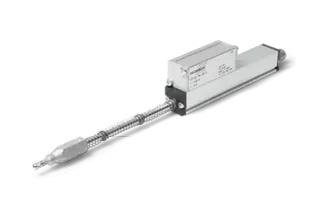

Potentiometric Linear Transducer CR18E with Electronics

Potentiometric linear transducer with integrated signal-converter in a compact industrial design

Product is no longer available!

Take a look at our current linear sensors

  • economically and proved potentiometer technology with conductive plastic
  • dimensions in a compact industrial design
  • easy coupling by probe
  • long life time
  • high accuracy because of high resolution and a good linearity
  • supply voltage 24VDC±20%
  • analog output 0..10V bzw. 4…20mA
Spécifications
Effective electrical travel From 25 to 10 mm in 4 variants
Sensor Technology Potentiometric
Protection Class IP40
Resolution Analogue stepless
Mechanical Detection Type Front and rear side push rod with spring return
