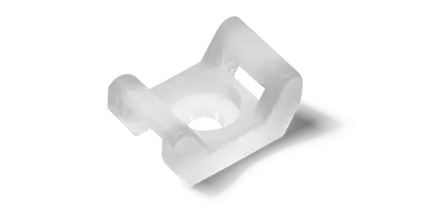

Cable tie mount LPR549

Mounting base for cable ties with 4.8 or 9 mm width. Sockets available for screw mounting.


405249
LPR 5496 SCHRAUBSOCKEL
405250
LPR 5498 SCHRAUBSOCKEL
Assembly type srewable srewable
Material polyamide 6.6 polyamide 6.6
Fire protection class UL 94 V-2 UL 94 V-2
Temperature range -40°C - +85°C -40°C - +85°C
Colour natural natural
Ø Mounting hole in mm 5,0 3,5
Widths in mm 22,5 15
Height in mm 11 7
Depth in mm 14,6 9,5
For cable ties with width 9,0 4,8
