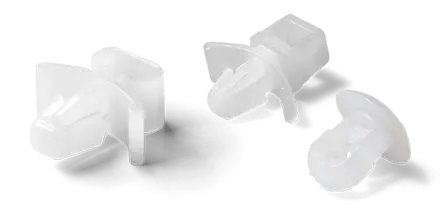

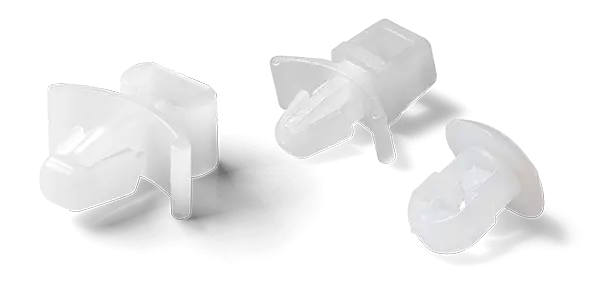

Cable tie mount LPR32

Mounting bases in 3 designs for cable ties up to 4.8 mm wide. Sockets available for snap-on mounting.


402355
LPR 3201 KABELBINDERHALTER
402356
LPR 3202 KABELBINDERHALTER
402357
LPR 3203 KABELBINDERHALTER
Assembly type plug in mounting plug in mounting plug in mounting
Type Type 1 Type 2 3
Material nylon 66 nylon 66 nylon 66
Fire protection class UL 94 V-2 UL 94 V-2 UL 94 V-2
Colour natural natural natural
Ø Mounting hole in mm 4,8 6,35 6,35
Widths in mm 6,8 9,5 -
Panel thickness in mm 0,8 - 2,0 1,19 - 2,77 3,18
Height in mm 15,9 17,5 8,3
Depth in mm 7 7,1 -
For cable ties with width 3,6 4,7 4,8
