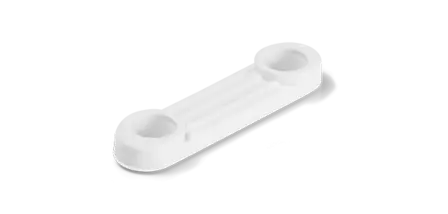

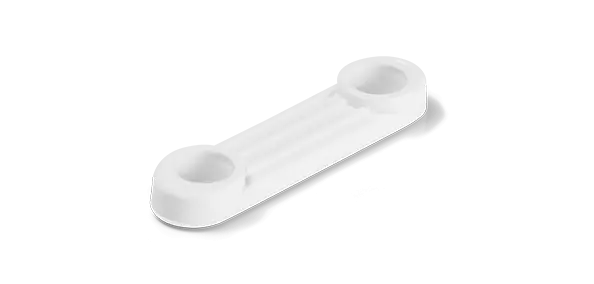

Plastic cable clamp LPS59

Miniature cable clamp for screw mounting and simultaneous fixing of the cable harness by mounting the cable holder. In different versions


410946
LPS 5922/17 KABELSCHELLE
411486
LPS 5922/3 KABELSCHELLE
Assembly type srewable srewable
Material nylon 66, fibre-glass reinforced nylon 66, fibre-glass reinforced
Fire protection class UL 94 HB UL 94 HB
Colour white black
Height in mm 3 3
Blocking mechanism open open
Ø Borehole in mm 4,0 3,1
Type of cable round cable round cable
Component width in mm 6,2 7
Component length in mm 26 23
