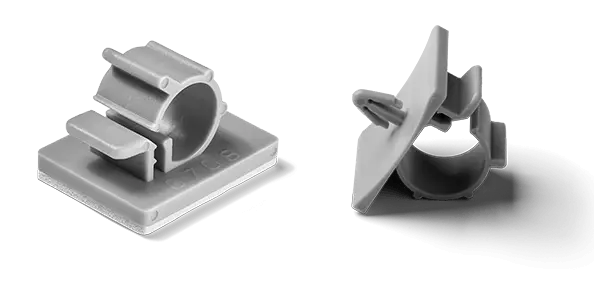

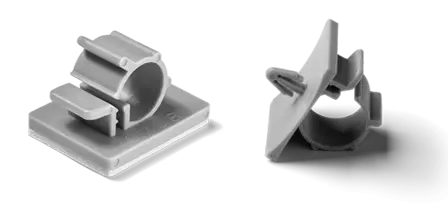

Cable clip LPC55
Cable clip for snap-on mounting or with adhesive film. With snap-in mechanism for cable bundles from Ø6 to Ø18 mm
| 408383 LPC 5521 KABELHALTER | 408384 LPC 5522 KABELHALTER | 408385 LPC 5523 KABELHALTER | 408386 LPC 5524 KABELHALTER | 408387 LPC 5525 KABELHALTER | 408388 LPC 5531 KABELHALTER | 408389 LPC 5532 KABELHALTER | 408390 LPC 5533 KABELHALTER | 408391 LPC 5534 KABELHALTER | 408392 LPC 5535 KABELHALTER | |
|---|---|---|---|---|---|---|---|---|---|---|
| Assembly type | with adhesive tape | with adhesive tape | with adhesive tape | with adhesive tape | with adhesive tape | plug in mounting | plug in mounting | plug in mounting | plug in mounting | plug in mounting |
| Type | Type 2 | Type 2 | Type 2 | Type 2 | Type 2 | Type 1 | Type 1 | Type 1 | Type 1 | Type 1 |
| Material | nylon 66 | nylon 66 | nylon 66 | nylon 66 | nylon 66 | nylon 66 | nylon 66 | nylon 66 | nylon 66 | nylon 66 |
| Fire protection class | UL 94 V-2 | UL 94 V-2 | UL 94 V-2 | UL 94 V-2 | UL 94 V-2 | UL 94 V-2 | UL 94 V-2 | UL 94 V-2 | UL 94 V-2 | UL 94 V-2 |
| Colour | grey | grey | grey | grey | grey | grey | grey | grey | grey | grey |
| Ø Mounting hole (B "bottom") in mm | - | - | - | - | - | 4,8 | 4,8 | 4,8 | 4,8 | 4,8 |
| Panel thickness in mm | - | - | - | - | - | 1,8 - 2,8 | 1,8 - 2,8 | 1,8 - 2,8 | 1,8 - 2,8 | 1,8 - 2,8 |
| Ø Bundle/ Cable in mm | 6,0 - 7,0 | 7,0 - 8,0 | 9,0 - 10,0 | 12,0 - 14,0 | 16,0 - 18,0 | 6,0 - 7,0 | 7,8 - 8,0 | 9,0 - 10,0 | 12,0 - 14,0 | 16,0 - 18,0 |
| Blocking mechanism | locking | locking | locking | locking | locking | locking | locking | locking | locking | locking |
| Ø Borehole in mm | 6,0 - 7,0 | - | - | - | - | - | - | - | - | - |
| Type of cable | round cable | round cable | round cable | round cable | round cable | round cable | round cable | round cable | round cable | round cable |
| Component width in mm | 20 | 20 | 24,5 | 24,5 | 24,5 | 20 | 20 | 24,5 | 24,5 | 24,5 |
| Component length in mm | 25 | 25 | 30 | 30 | 30 | 25 | 25 | 30 | 30 | 30 |
