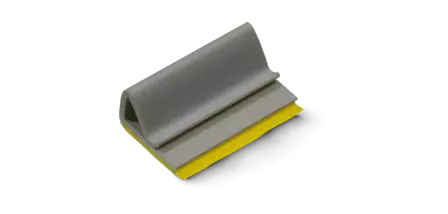

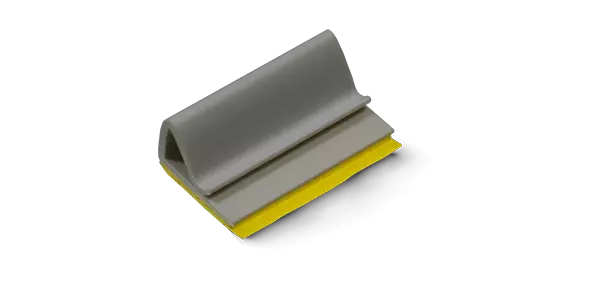

Cable clamp LPR100
Cable clamp with adhesive film for different sizes of cable bundles. Suitable for flat ribbon or round cable
400910 LPR 1001 | 400911 LPR 1002 | 402046 LPR 1003 | |
---|---|---|---|
Assembly type | with adhesive tape | with adhesive tape | with adhesive tape |
Material | PVC | PVC | PVC |
Fire protection class | UL 94 V-0 | UL E136577 | UL 94 V-0 |
Temperature range | 0 - +50°C | 0 - +50°C | -10°C - +70°C |
Colour | grey | grey | grey |
Material adhesive film | rubber based | rubber based | rubber based, foam polyethylene |
Height in mm | 6,4 | 9,7 | 9,6 |
Blocking mechanism | clamping | clamping | clamping |
Type of cable | ribbon cable | ribbon cable | ribbon cable |
Component width in mm | 14,3 | 27,7 | 26,0 |
Component length in mm | 25,4 | 25,4 | 25,0 |
