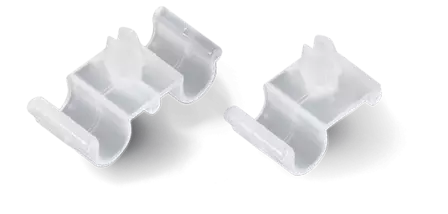

Cable clamp KKKDE

Cable clamp for snap-in mounting with one or two cable holders for cable bundles with max. Ø3.2 to Ø6.4 mm


400893
KKK E3 KUNSTSTOFFKABEL-CLIP
400894
KKK E4 KUNSTSTOFFKABEL-CLIP
400895
KKK E6 KUNSTSTOFFKABEL-CLIP
400896
KKK D3 KUNSTSTOFFKABEL-CLIP
400897
KKK D4 KUNSTSTOFFKABEL-CLIP
400898
KKK D6 KUNSTSTOFFKABEL-CLIP
Assembly type plug in mounting plug in mounting plug in mounting plug in mounting plug in mounting plug in mounting
Type Type 2 Type 2 Type 2 Type 1 Type 1 Type 1
Material nylon 66 nylon 66 nylon 66 nylon 66 nylon 66 nylon 66
Fire protection class UL 94 V-2 UL 94 V-2 UL 94 V-2 UL 94 V-2 UL 94 V-2 UL 94 V-2
Colour natural natural natural natural natural natural
Ø Mounting hole (B "bottom") in mm 3,18 3,18 3,18 3,18 3,18 3,18
Panel thickness in mm 1,57 1,57 1,57 1,57 1,57 1,57
Height in mm 4,3 6,1 7,6 4,3 6,1 7,6
Ø Bundle/ Cable in mm 3,2 4,8 6,4 3,2 4,8 6,4
Blocking mechanism clamping clamping clamping clamping clamping clamping
Type of cable round cable round cable round cable round cable round cable round cable
Component width in mm 7,6 7,6 7,6 7,6 7,6 7,6
Component length in mm 12,4 14,2 15,7 19 22,6 25,9
