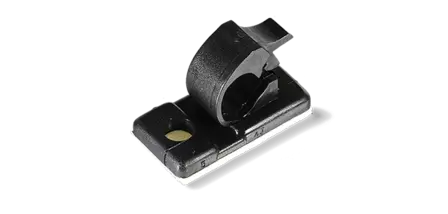

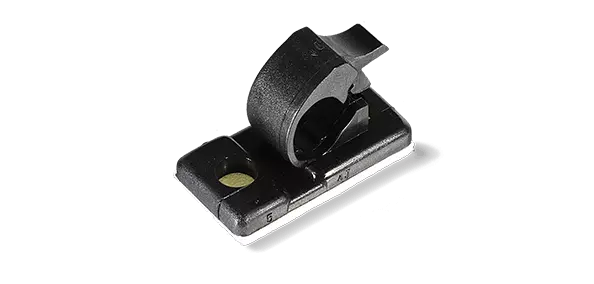

Plastic cable clip LPR55

Robust cable clip design for screw and adhesive film mounting. With locking mechanism for cables from Ø5.5 to Ø17 mm. Locking and unlocking with screwdriver


402550
LPR 5501 RUNDKABELHALTER
402551
LPR 5502 RUNDKABELHALTER
402552
LPR 5503 RUNDKABELHALTER
402553
LPR 5504 RUNDKABELHALTER
402554
LPR 5505 RUNDKABELHALTER
402555
LPR 5506 RUNDKABELHALTER
Assembly type with adhesive tape with adhesive tape with adhesive tape with adhesive tape with adhesive tape with adhesive tape
Material nylon 66 nylon 66 nylon 66 nylon 66 nylon 66 nylon 66
Fire protection class UL 94 V-2 UL 94 V-2 UL 94 V-2 UL 94 V-2 UL 94 V-2 UL 94 V-2
Colour black black black black black black
Height in mm 12,2 14,5 18,5 19,5 20,3 24
Ø Bundle/ Cable in mm 5,5 7,5 12,0 14,0 15,0 17,0
Blocking mechanism locking locking locking locking locking locking
Ø Borehole in mm 5,0 5,0 5,3 5,0 5,0 4,8
Type of cable round cable round cable round cable round cable round cable round cable
Component width in mm 13,4 13,4 16,5 16,4 16,0 15,6
Component length in mm 25,8 28,8 34,8 36,5 38,2 41,3
