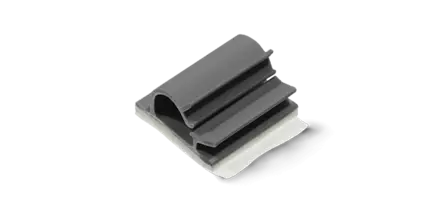

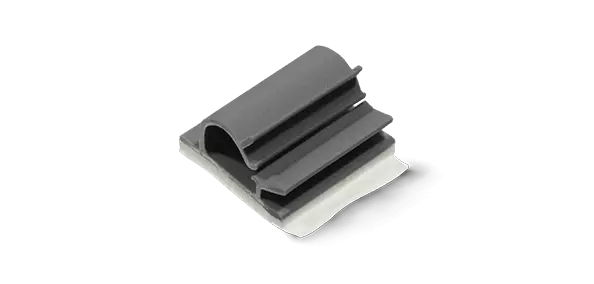

Plastic cable clip LPR52

Cable clip with adhesive film mounting. For holding cables with diameters from 6.4 up to 19.1 mm. The locking mechanism is releasable.


400956
LPR 5202 RUNDKABELHALTER
400957
LPR 5204 RUNDKABELHALTER
400958
LPR 5205 RUNDKABELHALTER
Assembly type with adhesive tape with adhesive tape with adhesive tape
Type Type 1 Type 2 Type 2
Material PVC PVC PVC
Fire protection class UL 94 V-0 UL 94 V-0 UL 94 V-0
Colour grey grey grey
Material adhesive film acrylic based acrylic based acrylic based
Height in mm 14,3 21,4 25,4
Ø Bundle/ Cable in mm 6,4 12,7 19,1
Blocking mechanism locking locking locking
Type of cable round cable round cable round cable
Component width in mm 19,1 25,4 25,4
Component length in mm 19,1 25,4 25,4
