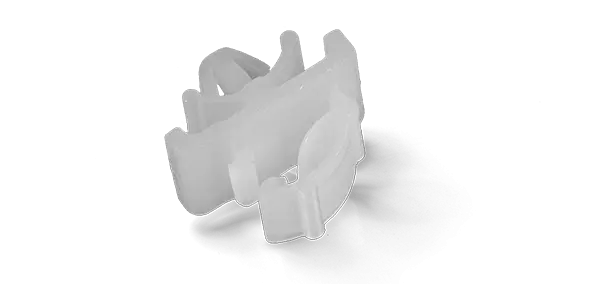

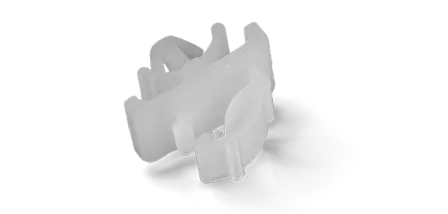

Plastic cable clip ESS104

Cable clamp for snap-in mounting. Locking mechanism with internal safety clip function for a secure fit of the cable. For cables with max. Ø2.1 up to Ø8 mm.


407855
ESS 104-S KABELHALTER
407856
ESS 206-S KABELHALTER
407857
ESS 314-S KABELHALTER
Assembly type plug in mounting plug in mounting plug in mounting
Material nylon 6 nylon 6 nylon 6
Fire protection class UL 94 V-2 UL 94 V-2 UL 94 V-2
Colour natural natural natural
Ø Mounting hole (B "bottom") in mm 3,8 3,8 4,8
Ø Bundle/ Cable in mm 2,1 4,5 8,0
Blocking mechanism locking locking locking
Type of cable round cable round cable round cable
Component width in mm 8 8 8
Component length in mm 13,4 16,2 21,4
Width holder in mm 6 6 8
